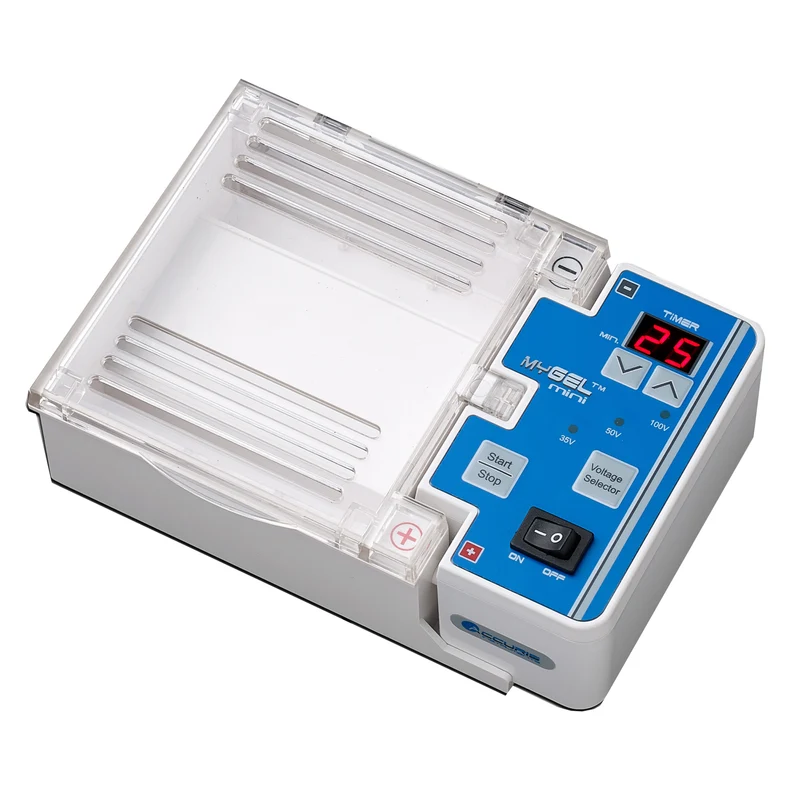

Accuris™ myGel™ Mini Electrophoresis System w/ 2 x Casting Sets, E1101

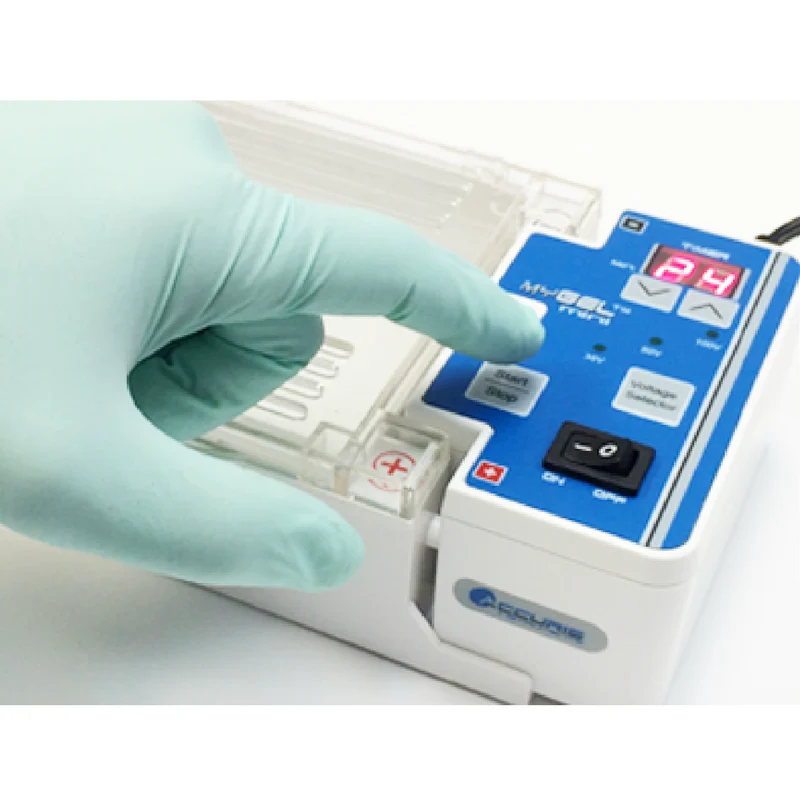

The myGel™ Mini gel box securely attaches to the power supply every time, with three preset voltages (35V, 50V, 100V) and a 99-minute timer controlled via a membrane keypad. The vented safety lid features a viewing window and ensures current only runs when properly closed.

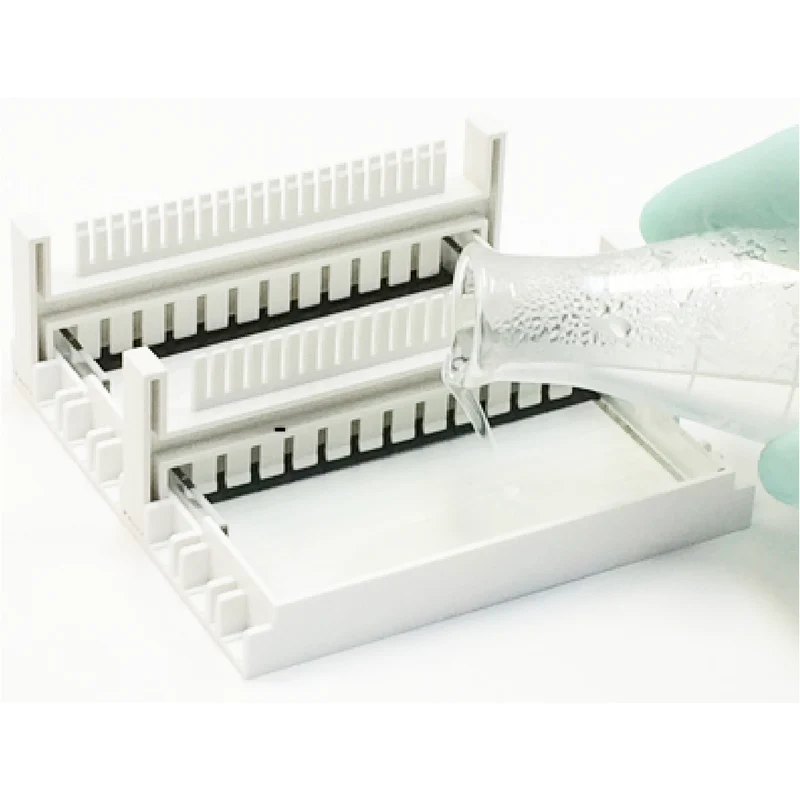

Included trays and casting stands accommodate both 10.5 × 6 cm and 5 × 6 cm gels, with double-sided combs—small-tooth combs compatible with multichannel pipettes. Quick, easy casting is aided by a dark contrast strip for well visualization and UV/blue-light fluorescent lines to track run progress

Features:

• Complete system, includes gel box, power supply and casting sets
• Quick and easy gel casting, no tape, clamps or spacers required
• Compact design, footprint: 7 x 5.1 in.

Warranty: Comes with 2 Years Manufacturer's Warranty

Country of Origin: China

Specifications:

Output Voltage:	35V, 50V or 100V
Timer:	0-99 min. or Cont.
Safety:	Lid interlock
Max. Buffer (ml):	230
Gel Capacity:	One: 10.5 x 6cm Two: 5 x 6cm
Weight:	1 lbs / 0.45 kg
Dimensions:	7.5 x 5.1 x 2.1 in
Electrical:	115V or 230V, 50-60Hz

Accuris™ MyGel™ Mini Electrophoresis System Brochure
