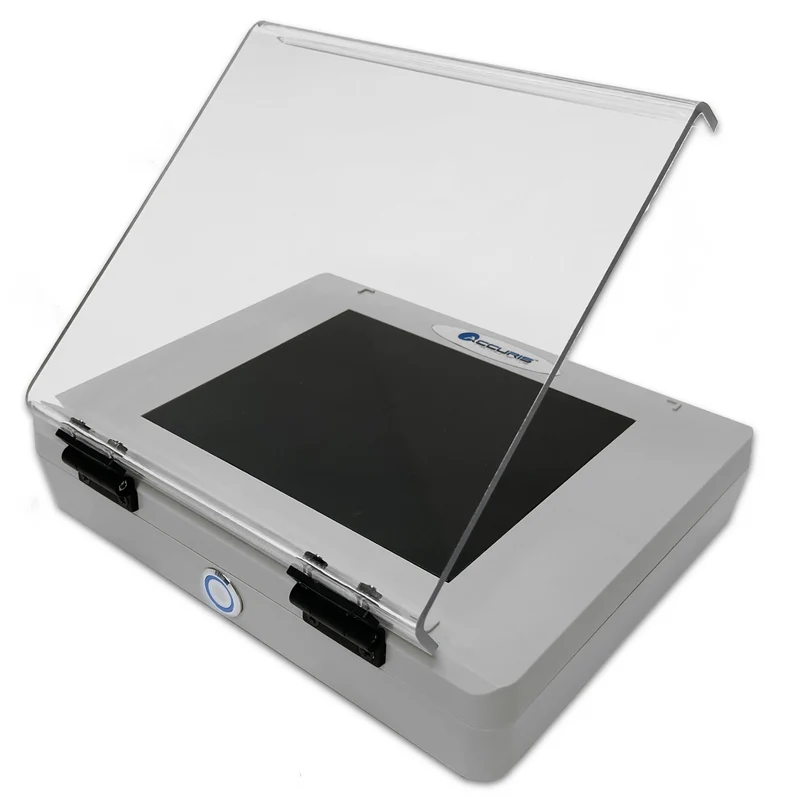

Accuris™ MyView™ UV Transilluminator, Viewing Surface 16.5 x 13.5 cm, E3100

The Accuris™ E3100 MyView™ is a compact UV Transilluminator designed for the high-sensitivity visualization of nucleic acids in agarose gels.

It is essentially the "personal-sized" version of the E3000, offering professional-grade performance with a much smaller footprint. It is the ideal choice for researchers who need a dedicated, reliable 302nm UV light source for their own bench space

Features:

• Optimized 302nm Wavelength: Provides the perfect balance of high-fluorescence excitation for Ethidium Bromide and SYBR stains while reducing the risk of DNA damage.
• Space-Saving Footprint: At only 10.5 x 9 inches, the MyView™ is designed to fit on even the most crowded laboratory benches.
• 16.5 x 13.5 cm Viewing Surface: Despite its small size, it accommodates standard-sized gels easily on its scratch-resistant black glass surface.
• Instant-On Technology: Utilizes high-intensity bulbs that require no warm-up time, allowing for immediate gel analysis.
• Integrated Safety Cover: Features a hinged, transparent orange UV-blocking cover to protect the user while providing a clear view of the bands.

Warranty: Comes with 2 Years Manufacturer's Warranty

Accuris™ Transilluminator Configurations

Model	E3000	E3100	E3200
Light Source	4 x 8W UV Bulb	4 x 6W UV Bulb	4 x 14W UV Bulb
Wavelength	Peak at 302nm	Peak at 302nm	Peak at 302nm
Variable  Intensity	Low (50%) or High 100%	No	Variable
Viewing Surface	16.5 x 19"	16.5 x 13.5"	21 x 26cm
Ext. Dims.	10.5 x 13 x 5.5"	2.8 x 8.5 x 1.9"	13.6 x 11.8 x 3.5"
Weight	2lbs	2lbs	5.15lbs
Electrical	115 or 230V	12V DC	24V DC
Warranty	2 years	2 years	2 years

Accuris™ E3000 Product Manual
