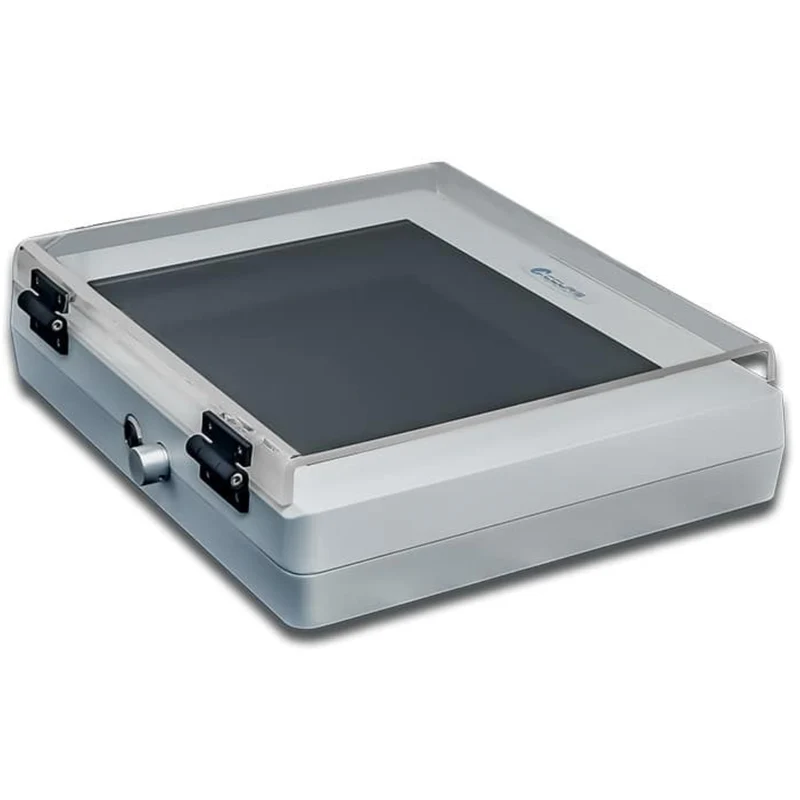

Accuris™ UV Transilluminator, Viewing Surface 21 x 26 cm, E3200

The Accuris™ E3200 UV Transilluminator is the high-capacity, high-sensitivity model in the MyView™ series. It is specifically designed for laboratories that require a larger viewing area and superior detection of low-concentration nucleic acid samples

Features:

• Large Format Viewing: Features a massive 21 x 26 cm viewing surface, making it ideal for large electrophoresis gels and high-throughput workflows.
• Superior Sensitivity: Equipped with four high-powered 14-Watt UV bulbs, providing the intensity needed to visualize the faintest bands of DNA or RNA.
• Continuous Intensity Control: Includes a front-mounted adjustment knob for variable UV intensity, allowing you to fine-tune the illumination to optimize signal-to-noise ratios.
• Midrange 302nm Output: Optimized for maximum excitation of Ethidium Bromide (EtBr), SmartGlow™, SYBR® Green, and other common laboratory stains.
• Safety & Durability: Built with a scratch-resistant glass filter and a hinged, adjustable UV-blocking safety cover for safe sample observation and band excision.

Warranty: Comes with 2 Years Manufacturer's Warranty

Accuris™ Transilluminator Configurations

Model	E3000	E3100	E3200
Light Source	4 x 8W UV Bulb	4 x 6W UV Bulb	4 x 14W UV Bulb
Wavelength	Peak at 302nm	Peak at 302nm	Peak at 302nm
Variable  Intensity	Low (50%) or High 100%	No	Variable
Viewing Surface	16.5 x 19"	16.5 x 13.5"	21 x 26cm
Ext. Dims.	10.5 x 13 x 5.5"	2.8 x 8.5 x 1.9"	13.6 x 11.8 x 3.5"
Weight	2lbs	2lbs	5.15lbs
Electrical	115 or 230V	12V DC	24V DC
Warranty	2 years	2 years	2 years

Accuris™ E3000 Product Manual
