Marca: DUOYI
DY2100 Clamp Ground Resistance Tester Earth Tester Digital Display Leakage Current Detector Ture RMS Data Upload
Descripción
Introduction
Clamp earth ground resistance tester is a major breakthrough in traditional grounding resistance measurement. It is widely used in the grounding resistance measurement of the power，telecommunications,meteorology, oilfield, construction and the industrial and electrical equipment.
Features:
In the measurement of a grounding system with loop, does not require breaking down the grounding wire, and need no auxiliary electrode. It is safe, fast and simple.
Clamp on ground resistance tester is equipped with a long jaw sized 65mmX 32mm, particularly suitable for the grounding with the flat steel.
DY2100 can measure leakage current and zero-sequence current with sensitive clamp.DY2100 has true-RMS. It is significant when there is noise signals and harmonic waves in grounding network to measure.
With USB port for data download&upload
Specifications:
|
Model |
DY2100 |
|
leakage current |
√ |
|
data upload |
√ |
|
True-RMS |
√ |
|
Jaw specification(mm) |
65mm x 32mm |
|
Jaw opening |
32mm |
|
Resistance range |
0.01-1000Ω |
|
Resistor Resolution |
0.001Ω |
|
Current measurement range |
0.00-30.00A |
|
resolution |
50µA |
|
Measured current frequency |
45-65Hz RMS |
|
Resistance alarm threshold setting range |
1-199Ω |
|
Current alarm threshold setting range |
1-499mA |
|
Protection level |
double insulation |
|
data storage |
99set |
|
Alarm function |
Alarm symbol |

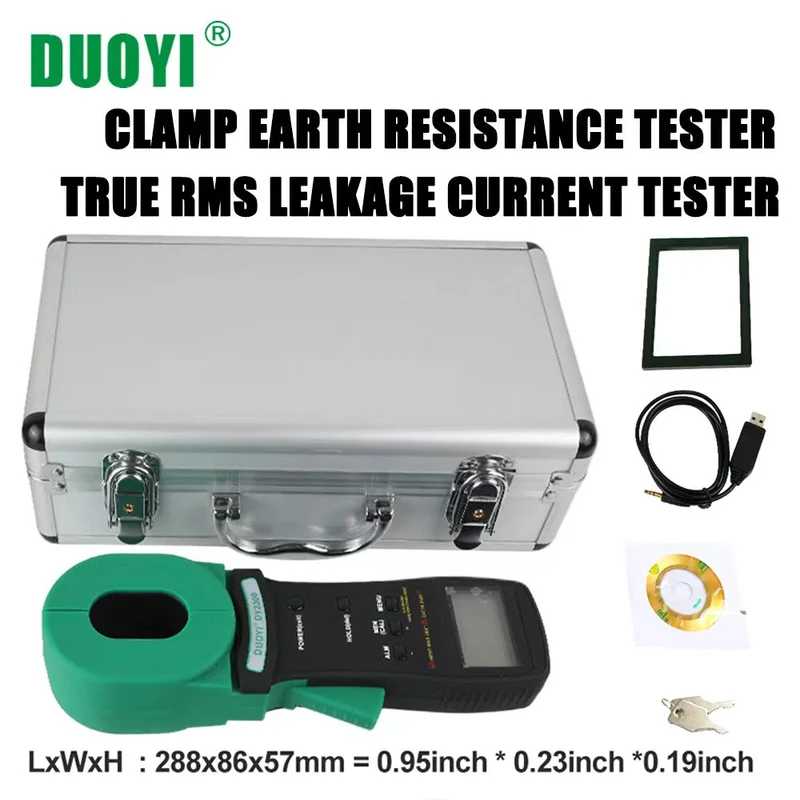

package list
1 x clamp earth resistance tester
1 x Test Ring
1 x carry case
1 x User Manual

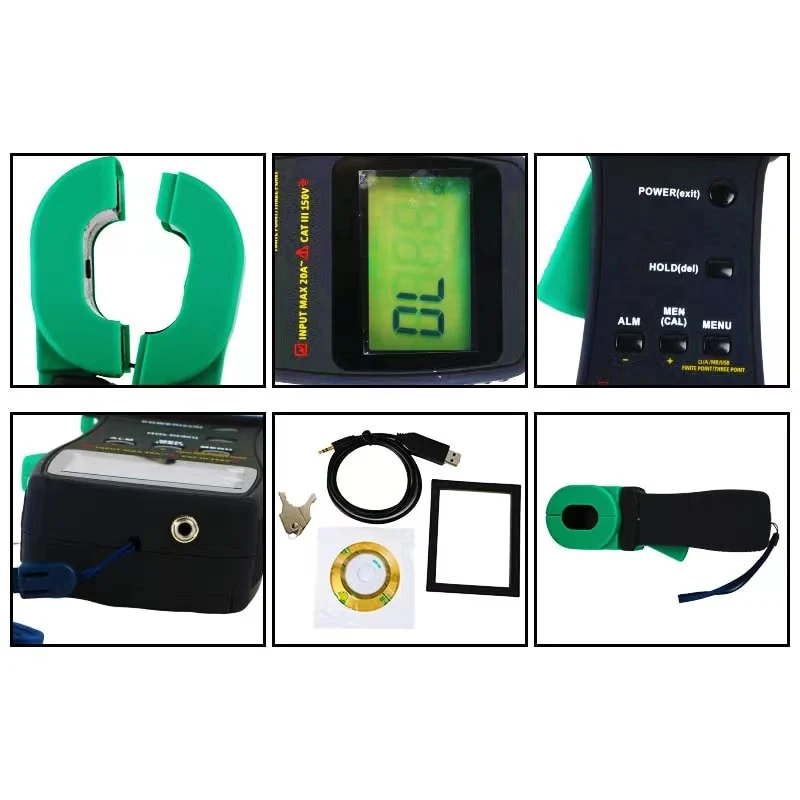

Application demonstrations in various fields PRODUCT DETAIL PRESENTATION
