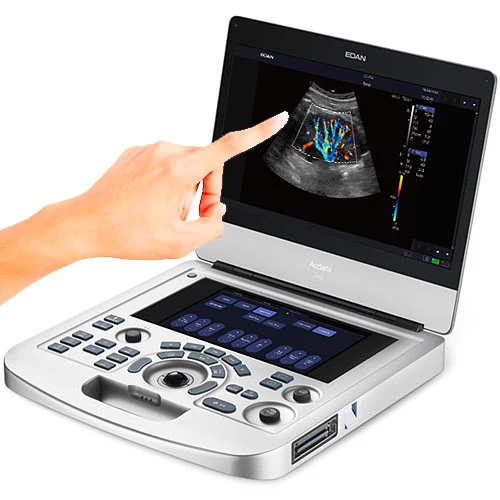

EDAN Acclarix® AX2 Digital Ultrasound Imaging System w/Choice of Transducer, 15" HD Color Touch Screen

The EDAN Acclarix® AX2 & AX3 have been designed from the relentless focus on delivering uncompromising performance at a cost-effective price. Alone with the unique dual-sockets and dual-batteries inspiration in a 4.5kg lightweight magnesium alloy body, the remarkable ax2 & ax3 deliver a surprising value to meet all the demands for clinical care.

*Single Transducer Port

Highlights:

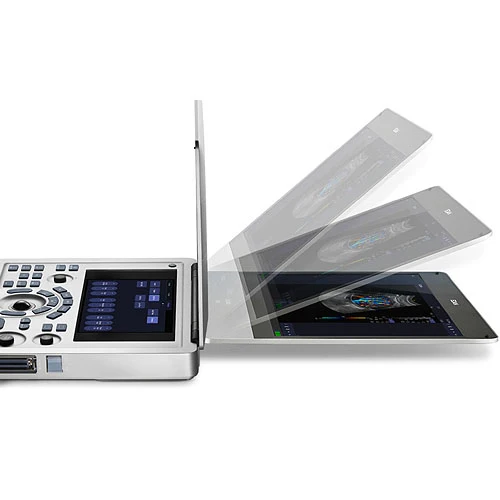

• Compact and ultra light design, 10lbs with built in carrying handle
• 15'' HD monitor with 10'' touch screen for customizable workflow
• Built-in battery for 2 hour continuous use
• 120G SSD, high capacity storage with USB transfer
• PW auto trace — One key in automatic measurement
• eTouch — Efficient ‘Swipe’ gesture control
• DICOM enabled

Features:

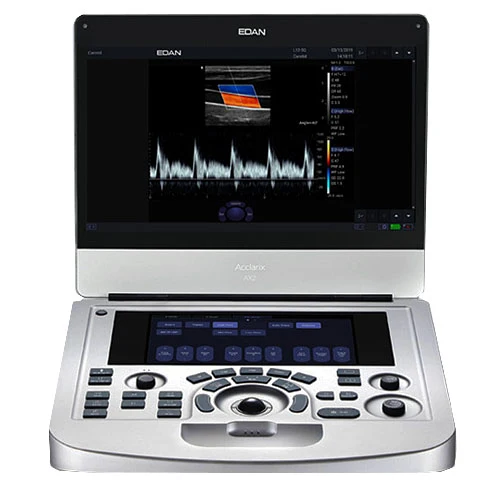

• 15" HD Color Touch Display
• Ergonomic control panel
• Customizable user interface
• 10lbs magnesium alloy body
• Built-in battery
• Dedicated preset measurement packages
• Streamlined data management
• Superb detail resolution
• Tissue adaptive imaging (TAI)
• PW auto trace

Package Includes:

• 1 x Choice of Transducer (Based on the option selected)
• Rechargeable Lithium-Ion Battery (14.8V, 5000mAh), P/N 01.21.064143
• AC-DC adapter, P/N 21.21.064243
• Power Cord (USA Standard), P/N 01.13.037122
• Flash Disk (Netac,4G, USB2.0 Protocol), P/N 01.18.052245
• Ultrasound Gel(250g)
• Acclarix AX2/AX3 Series Advanced User Manual
• Acclarix AX2/AX3 Series Basic User Manual


Country of Manufacture: China

Warranty: Comes with 2 Years Manufacturer's Warranty

EDAN Acclarix® AX2/3 Brochure, EDAN Acclarix® AX2/3 Spec. Sheet

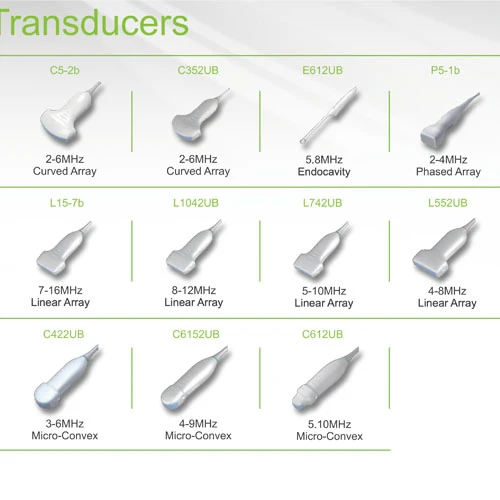

EDAN Acclarix® AX2/3 Ultrasound Transducer Options:

Specifications:

Part No	Description
C5-1Q	AX2/AX3 Single Crystal Convex Probe C5-1Q Applications used for:  Abdomen, Fetal / Obstetrics, Urology, Gynecology, Musculoskeletal
C5-2Q	C5-2Q Acclarix AX Series Convex Array Transducer: 60mm, 128 Elements , 1.5 - 6.5 MHz (-20dB), 2-5 MHz (-6dB), 40-300mm depth, Abdomen, OB, Gynecology, Nerve.
C6-2MQ	C6-2MQ Acclarix AX2 and AX3 Mechanical Convex Array Transducer: 40mm, 128 Elements, 1.5-7 MHz (-20dB), 2-5 MHz (-6dB), Fetal Echo，OB,OB-1
E10-3BQ	AX2/AX3 Endocavity array transducer: E10-3BQ
E8-4Q	Acclarix Endocavity array transducer: 10mm, 128 elements, 3.5-12MHz, 4-8MHz, 15-110mm depth, Fetal / OBGYN, Trans-Vaginal, Trans-Rectal, Urology
L12-5Q	Acclarix Linear array transducer: 38mm, 128 elements, 3.5-12.5 MHz (-20dB) 5-12MHz (-6dB), 10-110mm depth, Small Parts, Peripheral Vascular, Muscoskeletal
L17-7HQ	L17-7HQ Acclarix AX2, AX3  Linear Array Transducer: 38mm, 128 Elements, 5-19 MHz (-20dB), 7-17MHz (-6dB), Small parts,MSK, Nerve,Superficial, Vascular.
L17-7SQ	L17-7SQ  Acclarix AX2 and AX3 Linear Array Transducer: 26mm, 192 Elements,  4.5-18.5 MHz (-20dB), 7-17MHz (-6dB), 10-110mm depth, MSK, Nerve, Vascular, SMP, Intra-operation, Superficial.
MC8-4Q	MC8-4Q Acclarix AX2 and AX3 Micro Convex Transducer: 15 mm, 128 Elements, 3 - 10MHz (-20dB), 4-8MHz(-6dB), Neonate*, Pediatric*, Nerve, Vascular.
MC9-3TQ	MC9-3TQ Acclarix AX2 and AX3 Micro Convex Transducer: 10 mm, 128 Elements, 2 - 11MHz (-20dB), 3-9MHz(-6dB), Neonate*, Pediatric*, Nerve, Vascular.
P5-1Q	EdanUSA Acclarix AX2/AX3 Phased array transducer:16mm, 64 elements, 1-4.5 MHz (-20dB), 1-5 MHx (-6dB), depth 40-300mm, Adult Cardiac, Abdomen, Pediatric Cardiac, Adult Cephalic
P7-3Q	EdanUSA Acclarix AX2/AX3 Phased array transducer:16mm, 64 elements, 1-4.5 MHz (-20dB), 1-5 MHx (-6dB), depth 40-300mm, Adult Cardiac, Abdomen, Pediatric Cardiac, Adult Cephalic
