Marca: Edan USA

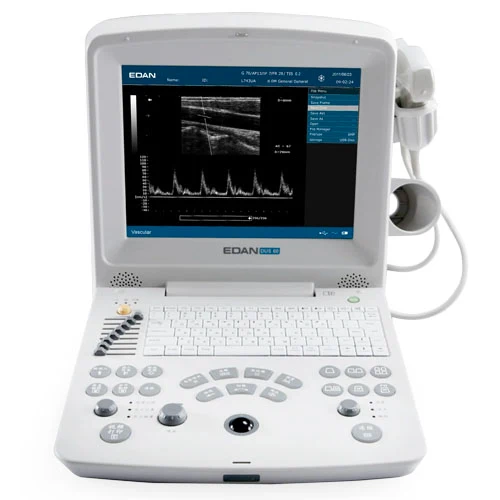

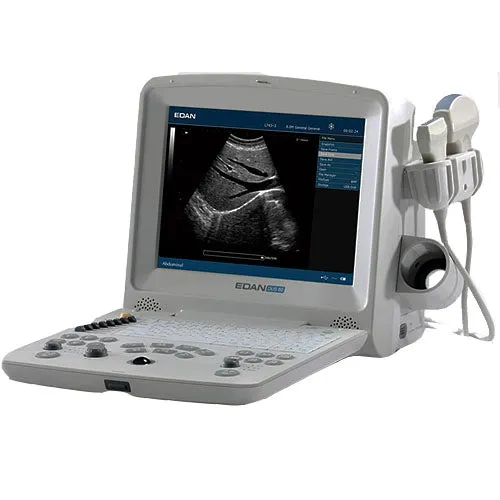

EDAN DUS60 Digital Ultrasound Imaging System w/Choice of Transducer, 12.1" LCD Screen

4696,09 €2531,58 €Oferta
Transducer Options
Cantidad

Descripción

The DUS 60 is an impressive mobile ultrasound system providing reliable value and durable quality across a wide range of applications. With the added support of pulsed wave Doppler imaging, the DUS 60 meets higher diagnostic requirements.

Highlights:

  • 12.1" LCD monitor
  • 2- Standard transducers connectors
  • 8- Segment TGC control
  • IP (Image Processing) function
  • 256- Frame cineloop memory
  • 504 MB Image storage capacity
  • Two USB ports
  • Pseudo color - 7 types
  • Measurement and Calculation Software Package
  • Flash Disk (U180, 2G,, USB 2.0 protocol)

Features:

  • Compact, Lightweight Design
  • 12.1" TFT-LCD monitor
  • Two active and exchangeable connectors
  • Backlit, easy-to-use control panel
  • Multiple peripheral ports
  • Innovative Technologies
  • PW Doppler supplies more hemodynamics information
  • Five-frequency transducers increase versatility
  • Phase Inversion Harmonic Imaging provides best-in-class image quality
  • Practical tools enhance efficiency
  • Intelligent 8-segment TGC for precise adjustment
  • Multi-format data transfer via USB and DICOM
  • Multiple-pseudo-color options enhance image presentation
  • User-friendly Workflow
  • One touch image optimization via smart image processing key
  • User defined settings for personalized use
  • One hour of battery-powered operation
  • Abdomen, Obstetrics, Gynecology, Endovaginal, Small Parts, Muculoskeletal, Vascular, Urology, Endorectal, Pediatrics
  • DICOM enabled

The DUS 60 provides outstanding performance for general imaging.

Package Includes:

  • DUS 60 Ultrasound machine
  • Choice of Transducer (Based on the option selected)
  • Fuse, P/N 21.21.064172
  • Transducer holder, P/N 01.51.113140
  • Transducer cable holder, P/N 01.52.113229
  • Ultrasound gel holder, P/N 21.51.133131
  • Power cord (USA Standard), P/N 11.13.36015
  • Ground cable, P/N 11.13.114214
  • Re-chargeable Li-Ion Battery (5,000mAh, 14.8V), P/N 01.21.064356

Country of Manufacture: China

Warranty: Comes with 2 Years Manufacturer's Warranty

EDAN DUS 60 Brochure, EDAN DUS 60 Spec. Sheet

EDAN DUS 60 Ultrasound Transducer Options:

 Part No Description Applications
C361-2 Convex Array Abdomen, OB/GYN, Urology
L761 -2 Linear Array Small Parts, Vascular, Musculoskeletal, Superficial
L743 -2 Linear Array Small Parts, Vascular, Musculoskeletal, Superficial
C611 -2 Micro-Convex Array Cardiology, Pediatrics
E611 -2 Transvaginal Endovaginal, OB/GYN
E741 -2 Endorectal Urology
