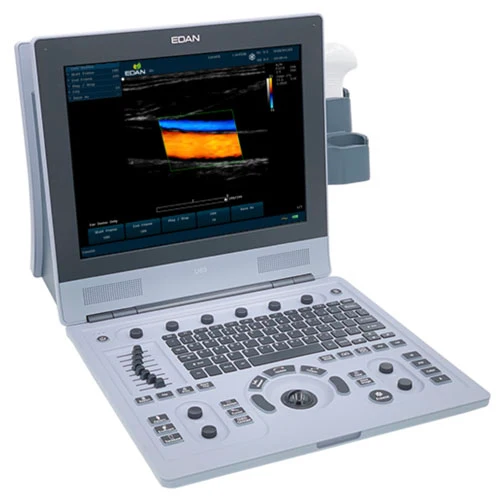

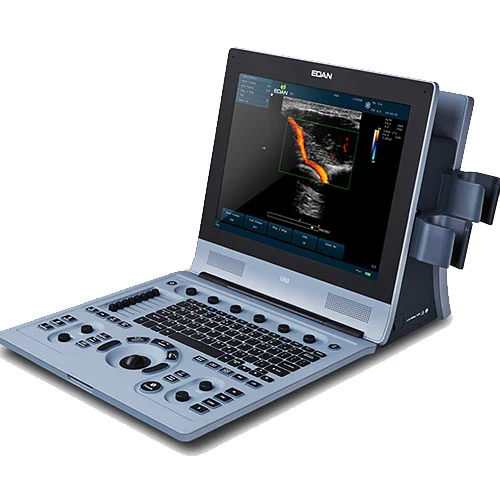

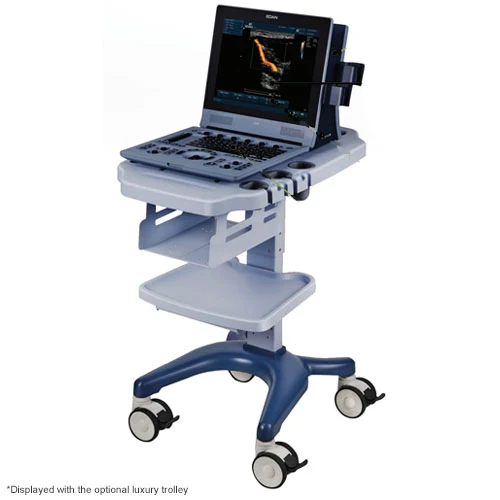

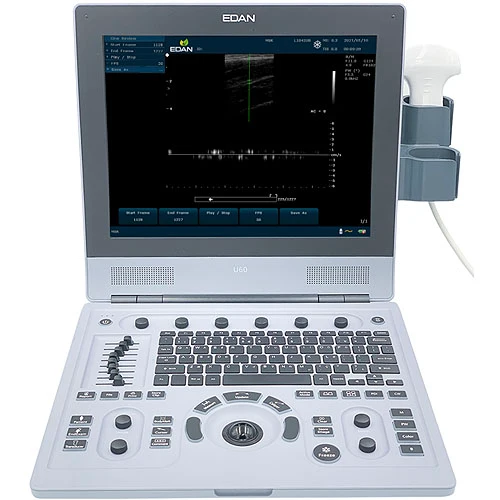

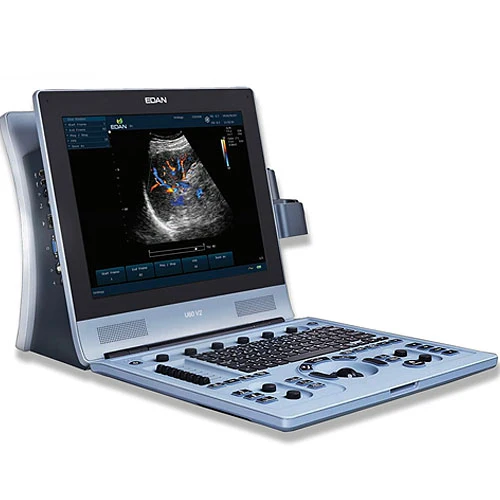

EDAN U60 Digital Ultrasound Imaging System w/Choice of Transducer, 15.1" LCD Color Screen

EDAN U60 Ultrasound Machine w/Choice of Transducer, 15.1" LCD Color Screen. A superior general imaging desktop system. Edan’s design philosophy with the U60 focused on providing clear imaging for confident diagnosis and  procedure guidance, a compact, user centered design, and a comprehensive set of applications.

With its compact design, user-friendly operation and advanced imaging technologies, the U60 ultrasound system offers a broad range of clinical applications to address all of your imaging needs.

Highlights:

• Compact, lightweight design facilitates mobility
• Integrated battery enables operation anywhere
• Large 15” monitor for easy viewing
• Full set of transducers to support all applications
• Tissue Harmonic Imaging
• Spatial Compounding Imaging
• Speckle Reduction Imaging
• Backlit, easy-to-use control panel
• Customizable user defined controls
• Large capacity data storage

Features:

• 15 inch LCD monitor
• Two standard transducer connectors
• Color Doppler Imaging
• Pulsed Wave Doppler
• Continuous Wave Doppler(CW)
• Spectral Doppler high-PRF(HPRF)
• Directional Power Doppler Imaging
• Phased Inversion Harmonic Imaging
• Spatial Compounding Imaging
• Speckle Reduction Imaging
• Measurement and calculation software packages
• Luxury carrying bag
• Multi-Pseudo color
• DICOM enabled

Package Includes:

• 1 x Choice of Transducer (Based on the option selected)
• 2 x Fuse, P/N 21.21.064172
• 1 x Potential Equalization Conductor, P/N 01.13.114214
• 1 x Power Cord (USA Standard), P/N 01.13.037122
• 2 x Flash Disk (Netac,4G, USB2.0 Protocol), P/N 01.18.052245
• 1 x Ultrasound Gel(CE, 250g)
• 1 x Quick Manual for U60 (English)
• 1 x User Manual for U60 (English)

Country of Manufacture: China

Warranty: Comes with 2 Years Manufacturer's Warranty

EDAN U60 Ultrasound Transducer Options:

Part No	Description	Applications
L742UB	Linear array transducer: L742UB(6.5/7.5/8.5/H9.0/H 9.4MHz, 128 elements)	Small Parts, Vascular, Musculoskeletal, Superficial
L1042UB	Linear array transducer: L1042UB(8/9.5/11/H13.0/ H 13.4MHz, 128 elements)	Small Parts, Vascular, Musculoskeletal, Superficial
E612UB	Transvaginal array transducer: E612UB(5.5/6.5/7.5/H9.0 / H9.4MHz, 128 elements)	Obstetrics, Gynecology
L15-7b	Linear array transducer: L15-7b(10.0/12.0/14.0/H14.4/H14.8MHz, 128 elements)	Thyroid, Breast, SMP, MSK
C6152UB	Micro-convex array transducer  C6152UB(5.5/6.5/7.5/H9.0/H9.4MHz,128 elements)	Thyroid, Breast, SMP, MSK
C612UB	Micro-convex array transducer : C612UB (5.5/6.5/7.5/H9.0/ H9.4MHz,128 elements)	Obstetrics, Gynecology
C5-2b	Convex array transducer: C5-2b(2.5/3.5/4.0/H5.0/H6.0MHz, 128 elements)	OB/GYN, Abdomen
P5-1b	Phase array transducer: P5-1b(2.0/2.5/3.0/H4.0/H5.0MHz, 64 elements)	Cardiac Screening

EDAN U60 Brochure, EDAN U60 Spec. Sheet
