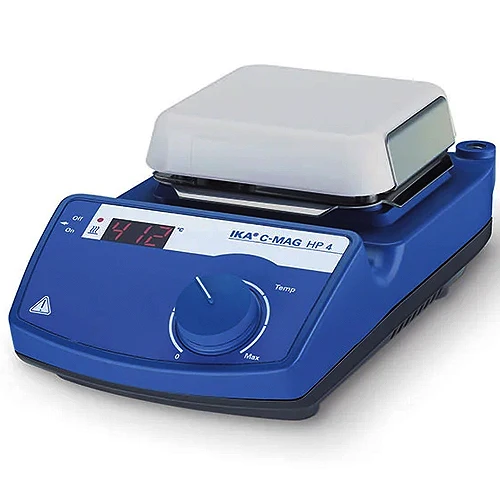

IKA® C-MAG HP 4 Ceramic Hotplate, Max. Temp. 550°C, 3581601

The IKA C-MAG HP 4 is a compact ceramic-glass hotplate built for precise, repeatable heating in the laboratory. The chemically resistant ceramic-glass surface withstands aggressive media and wipes clean easily, while a fixed safety circuit protects against overheating.

Temperature is set exactly through a digital LED display, and a Hot Top residual-heat indicator warns of a hot surface to help prevent burns. The elevated control panel keeps the controls clear of leaking liquids, and a digital error code display aids troubleshooting.

Key features:

• Ceramic-glass heating surface with excellent chemical resistance
• Fixed safety temperature circuit for overheating protection
• Exact temperature setting via digital LED display
• Hot Top residual-heat warning indicator to help prevent burns
• Digital error code display for easy troubleshooting
• Elevated control panel protects against leaking liquids

Package Includes:

• C-MAG HP 4 ceramic hotplate

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Number of heating points	1
Heat output	250 W
Heating temperature range	50 - 500 C
Heat control	Turning knob
Set temperature resolution	5 K
Volume max.	5 l
Heating rate (heating plate)	2.5 K/min
Set-up plate material	ceramic
Set-up plate dimensions	100 x 100 mm
Dimensions (W x H x D)	150 x 105 x 260 mm
Weight	3 kg
Permissible ambient temperature	5 - 40 C
Permissible relative humidity	80 %
Protection class (DIN EN 60529)	IP 21
Voltage	120 V
Frequency	50/60 Hz
Power input	255 W

Product Data Sheet | Product Manual
