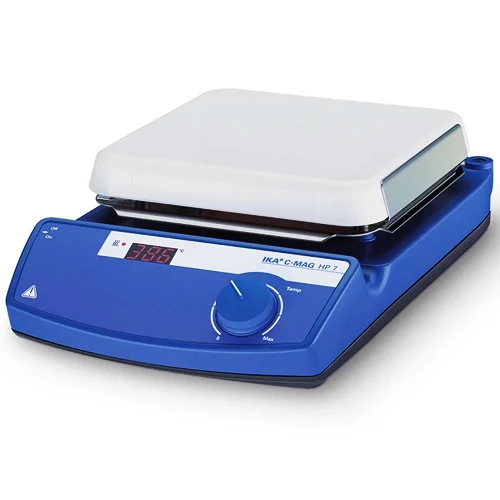

IKA® C-MAG HP 7 Ceramic Hotplate, Max. Temp. 550°C, 3581801

The IKA C-MAG HP 7 is a powerful ceramic-glass hotplate for precise laboratory heating. Its chemically resistant ceramic-glass surface stands up to aggressive media and cleans easily, while a fixed safety circuit guards against overheating during extended runs.

A 1000 W heater and 180 x 180 mm plate heat volumes up to 10 liters quickly, and a connection for the ETS-D5 external temperature sensor enables accurate closed-loop control of the medium. The Hot Top residual-heat indicator and elevated control panel add safety and convenience.

Key features:

• Ceramic-glass heating surface with excellent chemical resistance
• Powerful 1000 W heater for fast, even heat-up
• Connection for ETS-D5 external temperature sensor
• Hot Top residual-heat warning indicator to help prevent burns
• Fixed safety temperature circuit for overheating protection
• Elevated control panel protects against leaking liquids

Package Includes:

• C-MAG HP 7 ceramic hotplate

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Number of heating points	1
Heat output	1000 W
Heating temperature range	50 - 500 C
Heat control	Turning knob
Set temperature resolution	5 K
Connection for ext. temperature sensor	ETS-D5
Volume max.	10 l
Heating rate (heating plate)	5 K/min
Set-up plate material	ceramic
Set-up plate dimensions	180 x 180 mm
Dimensions (W x H x D)	220 x 105 x 330 mm
Weight	5 kg
Permissible ambient temperature	5 - 40 C
Permissible relative humidity	80 %
Protection class (DIN EN 60529)	IP 21
Voltage	120 V
Frequency	50/60 Hz
Power input	1005 W

Product Data Sheet | Product Manual
