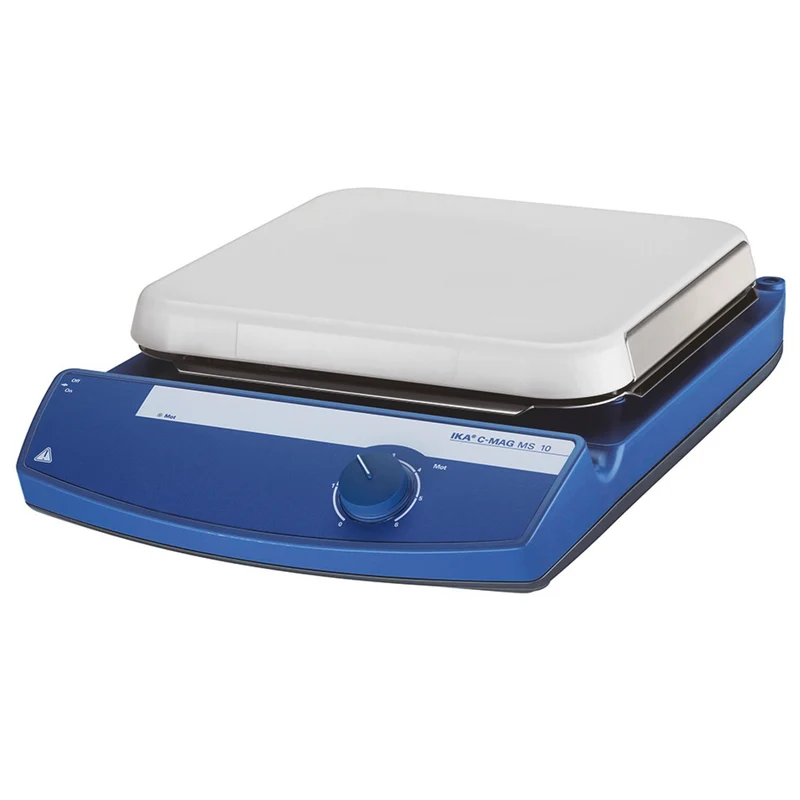

IKA® C-MAG MS10 Magnetic Stirrer, Max. Stirring 15L, 3582601

The IKA C-MAG MS 10 is a high-capacity magnetic stirrer for laboratory mixing without heating. The chemically resistant ceramic set-up plate gives a tough, easy-to-clean working surface, while the powerful drive stirs volumes up to 15 liters of water.

With a generous 260 x 260 mm plate and support for loads up to 20 kg, the MS 10 is ideal for large vessels and demanding batches. The elevated control panel shields the speed dial from spills, and the 100 to 1500 rpm range spans gentle to vigorous stirring.

Key features:

• Magnetic stirrer without heating for ambient-temperature mixing
• Chemically resistant ceramic set-up plate (260 x 260 mm)
• Powerful motor stirs quantities up to 15 l (H2O)
• Wide speed range of 100 - 1500 rpm
• Elevated control panel protects against leaking liquids
• Supports stirring bars up to 80 mm and loads up to 20 kg

Package Includes:

• C-MAG MS 10 magnetic stirrer
• IKAFLON 20 magnetic stirring bar
• IKAFLON 30 magnetic stirring bar
• IKAFLON 40 magnetic stirring bar

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Number of stirring positions	1
Stirring quantity max. per position (H2O)	15 l
Maximum load	20 kg
Motor rating output	1.5 W
Direction of rotation	left
Speed adjustment	scale 0 - 6
Speed range	100 - 1500 rpm
Stirring bar length max.	80 mm
Self-heating of plate at max. stirring (RT 22C / 1h)	+2 K
Set-up plate material	ceramic
Set-up plate dimensions	260 x 260 mm
Dimensions (W x H x D)	300 x 105 x 415 mm
Weight	6 kg
Permissible ambient temperature	5 - 40 C
Permissible relative humidity	80 %
Protection class (DIN EN 60529)	IP 21
Voltage	120 V
Frequency	50/60 Hz
Power input	30 W

Product Data Sheet
