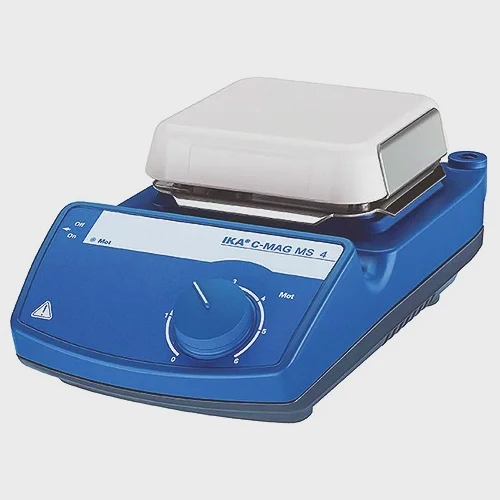

IKA® C-MAG MS4 Magnetic Stirrer, Max. Stirring 5L, 3582201

The IKA C-MAG MS 4 is a compact magnetic stirrer built for everyday laboratory mixing without any heating function. Its ceramic set-up plate delivers outstanding chemical resistance and easy cleaning, while the powerful drive handles stirring volumes up to 5 liters of water.

An elevated control panel keeps the speed dial protected from spills and leaking liquids, and the smooth speed range from 100 to 1500 rpm makes it suitable for both gentle blending and vigorous agitation across a wide variety of applications.

Key features:

• Magnetic stirrer without heating for safe ambient-temperature mixing
• Chemically resistant ceramic set-up plate (100 x 100 mm)
• Powerful motor stirs quantities up to 5 l (H2O)
• Wide speed range of 100 - 1500 rpm
• Elevated control panel protects against leaking liquids
• Compact footprint with low self-heating of the plate

Package Includes:

• C-MAG MS 4 magnetic stirrer
• IKAFLON 20 magnetic stirring bar
• IKAFLON 30 magnetic stirring bar
• IKAFLON 40 magnetic stirring bar

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	5 l
Maximum load	7.5 kg
Motor rating output	1.5 W
Direction of rotation	left
Speed adjustment	scale 0 - 6
Speed range	100 - 1500 rpm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)	+2 K
Set-up plate material	ceramic
Set-up plate dimensions	100 x 100 mm
Dimensions (W x H x D)	150 x 105 x 260 mm
Weight	3 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
Voltage	120 V
Frequency	50/60 Hz
Power input	30 W

Product Data Sheet | Product Manual
