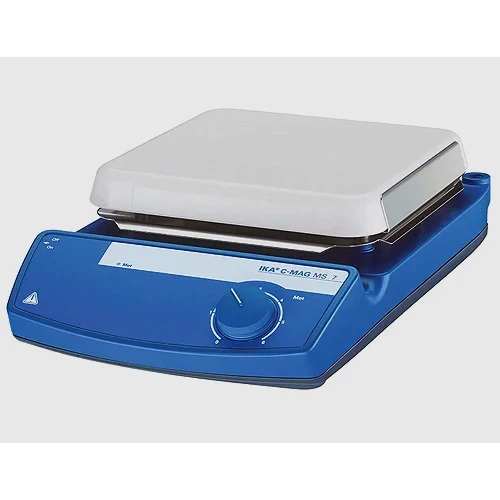

IKA® C-MAG MS7 Magnetic Stirrer, Max. Stirring 10L, 3582401

The IKA C-MAG MS 7 is a robust magnetic stirrer designed for laboratory mixing without heating. Its ceramic set-up plate provides excellent chemical resistance and a durable, easy-to-clean surface, while the strong drive comfortably stirs volumes up to 10 liters of water.

A larger 180 x 180 mm plate and an elevated control panel make the MS 7 well suited to bigger vessels and busy benches, keeping the speed controls clear of any leaking liquids. The continuous 100 to 1500 rpm range covers gentle to intensive stirring tasks.

Key features:

• Magnetic stirrer without heating for ambient-temperature mixing
• Chemically resistant ceramic set-up plate (180 x 180 mm)
• Powerful motor stirs quantities up to 10 l (H2O)
• Wide speed range of 100 - 1500 rpm
• Elevated control panel protects against leaking liquids
• Supports stirring bars up to 80 mm and loads up to 15 kg

Package Includes:

• C-MAG MS 7 magnetic stirrer
• IKAFLON 20 magnetic stirring bar
• IKAFLON 30 magnetic stirring bar
• IKAFLON 40 magnetic stirring bar

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Number of stirring positions	1
Stirring quantity max. per position (H2O)	10 l
Maximum load	15 kg
Motor rating output	1.5 W
Direction of rotation	left
Speed adjustment	scale 0 - 6
Speed range	100 - 1500 rpm
Stirring bar length max.	80 mm
Self-heating of plate at max. stirring (RT 22C / 1h)	+2 K
Set-up plate material	ceramic
Set-up plate dimensions	180 x 180 mm
Dimensions (W x H x D)	220 x 105 x 335 mm
Weight	5 kg
Permissible ambient temperature	5 - 40 C
Permissible relative humidity	80 %
Protection class (DIN EN 60529)	IP 21
Voltage	120 V
Frequency	50/60 Hz
Power input	30 W

Product Data Sheet | Product Manual
