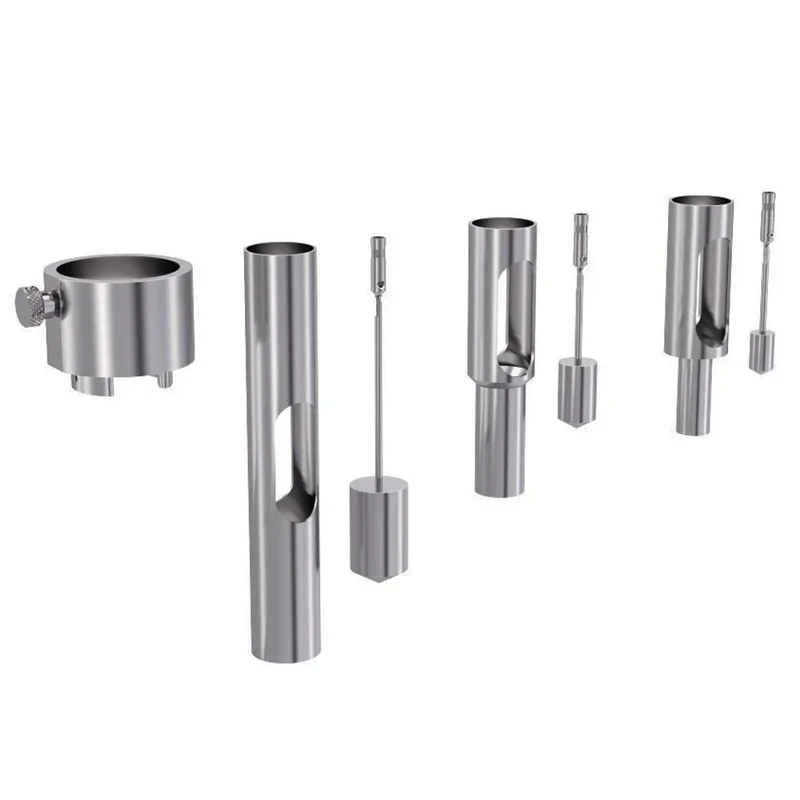

IKA® DIN S-1 Spindle Set, 25000326

The open DIN spindle set (O-DINS-1) measures viscosity according to DIN 53019 and can be used with customer-specific vessels on IKA Rotavisc viscometers. It combines a single-wall open jacket for quick immersion into the sample liquid with a coaxial cylinder system for analysis at a defined shear rate and shear stress. The maximum measurable viscosity is 50,000 mPas.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Spindle geometry	Cylinder
Connection	Thread M2.5 LH
Flow Jacket	yes
Mounting Bracket	yes
Sample container	Specified chamber
Working temperature max.	100 °C
Viscosity Accuracy (FSR)	2 %
Viscosity Repeatibility (FSR)	0.2 %
Min. FSR match ROTAVISC lo-vi	6 mPa.s
Max. FSR match ROTAVISC lo-vi	50000 mPa.s
Min. FSR match ROTAVISC me-vi	61 mPa.s
Max. FSR match ROTAVISC me-vi	50000 mPa.s
Min. FSR match ROTAVISC hi-vi I	122 mPa.s
Max. FSR match ROTAVISC hi-vi I	50000 mPa.s
Min. FSR match ROTAVISC hi-vi II	488 mPa.s
Max. FSR match ROTAVISC hi-vi II	50000 mPa.s
Material in contact with medium	stainless steel 1.4404
Dimensions (W x H x D)	390 x 102 x 310 mm
Weight	1.919 kg
