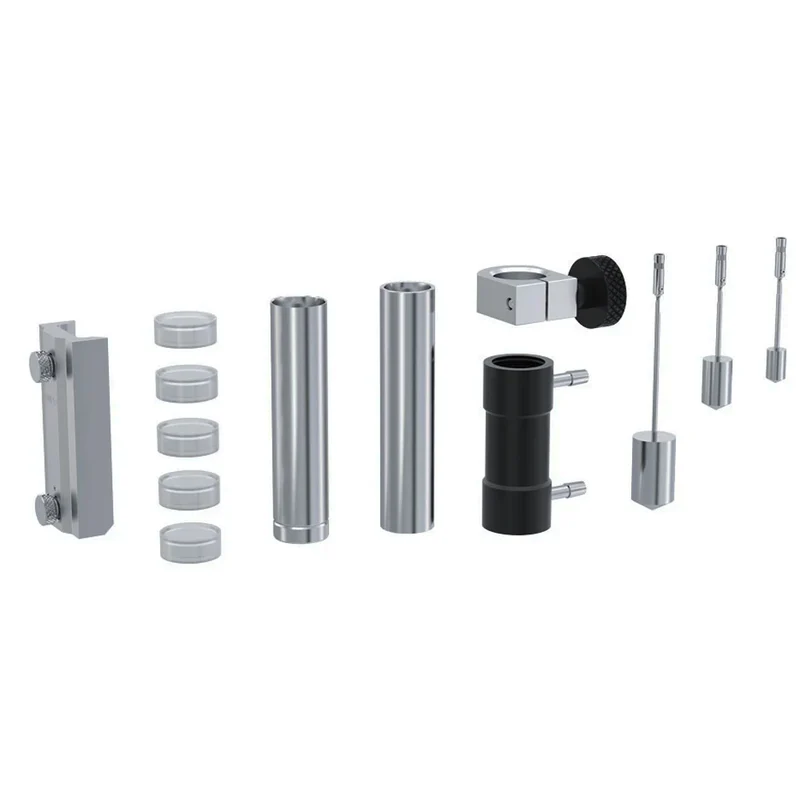

IKA® DINS-1 Adapter Set for Rotavisc, 25000387

The DINS-1 adapter set measures viscosity in compliance with the DIN 53019 standard and is compatible with all IKA Rotavisc viscometers. It uses a cylinder spindle geometry with a flow jacket and mounting bracket for precise, standardized measurements.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Spindle geometry	Cylinder
Connection	Thread M2.5 LH
Sample volume min.	2 ml
Sample volume max.	17 ml
Flow Jacket	yes
Mounting Bracket	yes
Sample container	Specified chamber
Working temperature max.	100 °C
Viscosity Accuracy (FSR)	2 %
Viscosity Repeatibility (FSR)	0.2 %
Min. FSR match ROTAVISC lo-vi	0.6 mPa.s
Max. FSR match ROTAVISC lo-vi	50000 mPa.s
Min. FSR match ROTAVISC me-vi	6.1 mPa.s
Max. FSR match ROTAVISC me-vi	50000 mPa.s
Min. FSR match ROTAVISC hi-vi I	12.2 mPa.s
Max. FSR match ROTAVISC hi-vi I	50000 mPa.s
Min. FSR match ROTAVISC hi-vi II	48.8 mPa.s
Max. FSR match ROTAVISC hi-vi II	50000 mPa.s
Material in contact with medium	stainless steel 1.4404, LDPE
Dimensions (W x H x D)	390 x 102 x 310 mm
Weight	2.5 kg

Product Data Sheet
