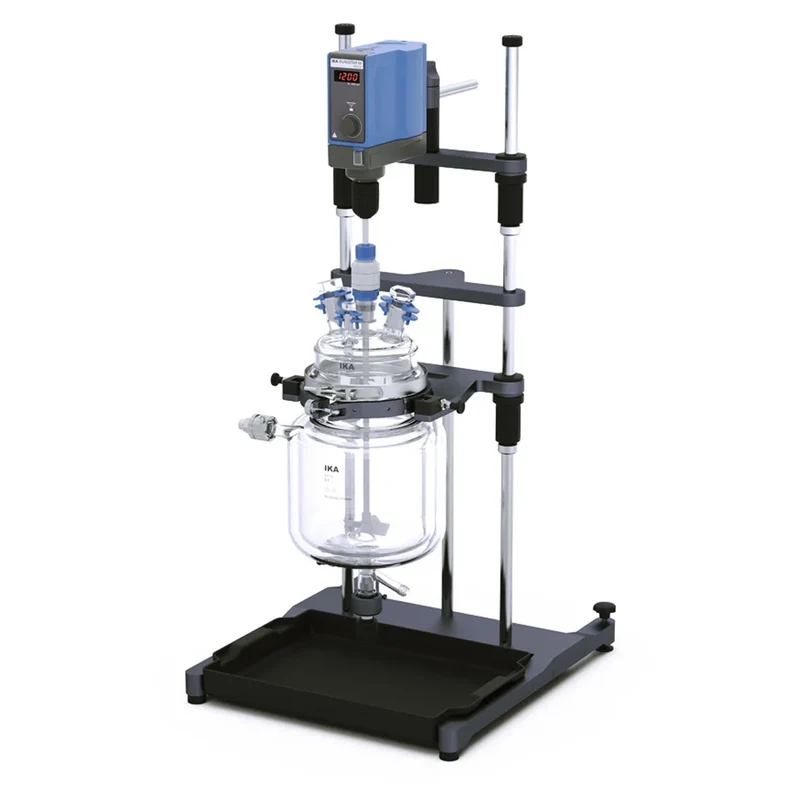

IKA® EasySyn 5000 Starter Reactor System, Vol 5.0l, 20113442

The IKA® EasySyn 5000 Starter is a complete benchtop laboratory reactor system for organic and aqueous syntheses, enabling safe, reproducible chemical reactions from lab to pilot scale. The package centers on a double-walled (jacketed) 5-liter borosilicate 3.3 glass reactor vessel with a bottom-discharge valve, paired with an ergonomic stand for quick vessel changes and working-height adjustment, and a EUROSTAR 60 digital overhead stirrer with a PTFE-coated propeller. High-quality materials allow operation from -50 to 200 °C and down to 3 mbar vacuum, and the stirrer guide supports vacuum operation. Note: temperature hoses for connecting a thermostat are not included.

Key features:

• Jacketed 5 L borosilicate 3.3 reactor vessel with bottom-discharge valve (spring-loaded spindle to prevent glass breakage)
• Working temperature -50 to 200 °C; vacuum operation down to 3 mbar
• EUROSTAR 60 digital overhead stirrer (60 Ncm) with keyless chuck
• Ergonomic stand for fast vessel exchange and working-height adjustment
• Reactor lid with multiple ports (1× NS 29/32 center, 2× NS 29/32, 1× NS 14/23)
• DN 150 clamp and FEP-coated O-ring for chemical resistance

Package Includes:

• SY stand
• SY 5000 D reactor vessel (double-wall, 5 l)
• SY clamp 150
• SY clamp ring 150
• SY O-ring 150
• SY 150.1 reactor lid
• R 4013 SY propeller stirrer
• EUROSTAR 60 digital overhead stirrer
• SY guide
• R 60 keyless chuck

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume	5 l
Flange dimension	DN150
Working temperature	-50 - 200 °C
Vacuum application	yes (to 3 mbar)
Useable volume min.	1000 ml (1500 ml with temperature probe)
Torque max. at stirring shaft	60 Ncm
Dimensions (W x H x D)	500 x 950 x 580 mm

Product Data Sheet | Product Manual
