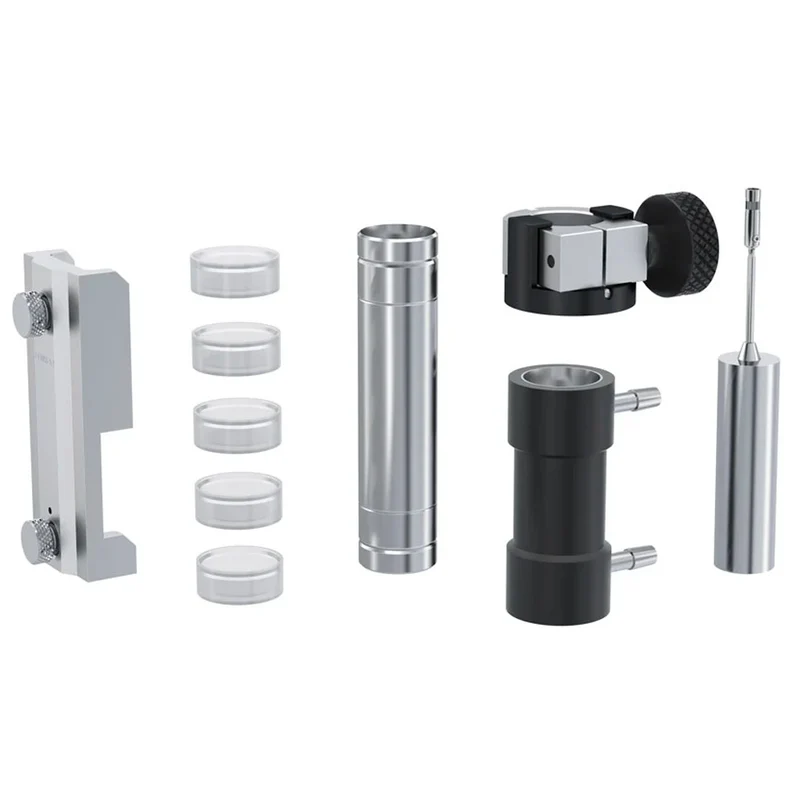

IKA® ELVAS-1 Lw Viscosity Adapter Spindle Set, 25000390

The ELVAS-1 extremely low viscosity adapter spindle set for IKA Rotavisc viscometers includes a double jacket for fast heating or cooling of the sample plus a coaxial cylinder system for analysis at a defined shear rate and shear stress. This 16 ml spindle is commonly paired with the Rotavisc lo-vi and allows measurements from 1 mPas (water at 20 °C); without the water jacket it can also be used in customer-specific vessels. The maximum measurable viscosity is 2,000 mPas.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Spindle geometry	Cylinder
Connection	Thread M2.5 LH
Diameter	25.15 mm
Spindle length	161 mm
Sample volume	16 ml
Flow Jacket	yes
Mounting Bracket	yes
Sample container	Specified chamber
Working temperature max.	100 °C
Viscosity Accuracy (FSR)	2 %
Viscosity Repeatibility (FSR)	0.2 %
Min. FSR match ROTAVISC lo-vi	1 mPa.s
Max. FSR match ROTAVISC lo-vi	2000 mPa.s
Min. FSR match ROTAVISC me-vi	3.2 mPa.s
Max. FSR match ROTAVISC me-vi	2000 mPa.s
Min. FSR match ROTAVISC hi-vi I	6.4 mPa.s
Max. FSR match ROTAVISC hi-vi I	2000 mPa.s
Min. FSR match ROTAVISC hi-vi II	25.6 mPa.s
Max. FSR match ROTAVISC hi-vi II	2000 mPa.s
Material in contact with medium	stainless steel 1.4404, LDPE
Dimensions (W x H x D)	300 x 110 x 275 mm
Weight	1.753 kg

Product Data Sheet
