IKA® H 135.102 Block 16 x 8 ml, 25000627

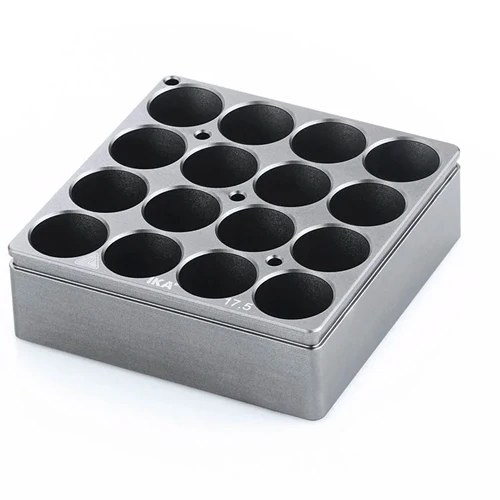

The IKA H 135.102 is a flat-bottom aluminum heating block designed to hold sixteen 8 ml vessels for temperature-controlled sample processing on compatible IKA magnetic stirrer hotplates. Its anodized aluminum construction ensures even heat transfer for reliable, uniform heating.

The block features 16 cylindrical holes (17.5 mm diameter, 23.5 mm depth) and supports working temperatures up to 300 °C. Either the H 135.10 support plate without handle or the H 135.11 support plate with handle is required to use the block.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Bottom shape	flat
Useable volume max.	8 ml
Number of holes	16
Hole diameter	17.5 mm
Hole depth	23.5 mm
Hole shape	cylindrical
Working temperature max.	300 °C
Material in contact with medium	Aluminum anodized
Dimensions (W x H x D)	79 x 25 x 79 mm
Weight	0.1725 kg

Product Data Sheet
