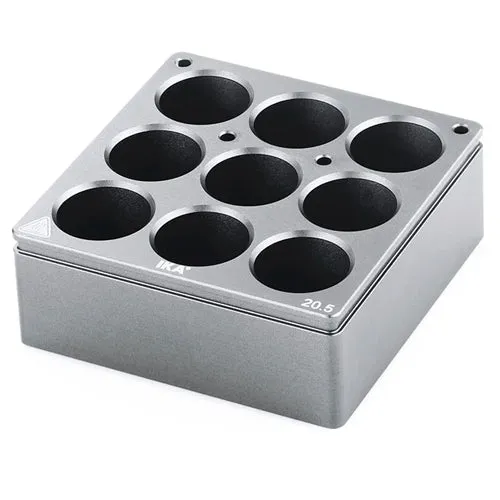

IKA® H 135.103 Block 9 x 16 ml, 25000628

The IKA H 135.103 is a flat-bottom aluminum heating block designed to hold nine 16 ml vessels for temperature-controlled sample processing on compatible IKA magnetic stirrer hotplates. Its anodized aluminum construction ensures even heat transfer for reliable, uniform heating.

The block features 9 cylindrical holes (20.5 mm diameter, 28.5 mm depth) and supports working temperatures up to 300 °C. Either the H 135.10 support plate without handle or the H 135.11 support plate with handle is required to use the block.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Bottom shape	flat
Useable volume max.	16 ml
Number of holes	9
Hole diameter	20.5 mm
Hole depth	28.5 mm
Hole shape	cylindrical
Working temperature max.	300 °C
Material in contact with medium	Aluminum anodized
Dimensions (W x H x D)	79 x 25 x 79 mm
Weight	0.275 kg
