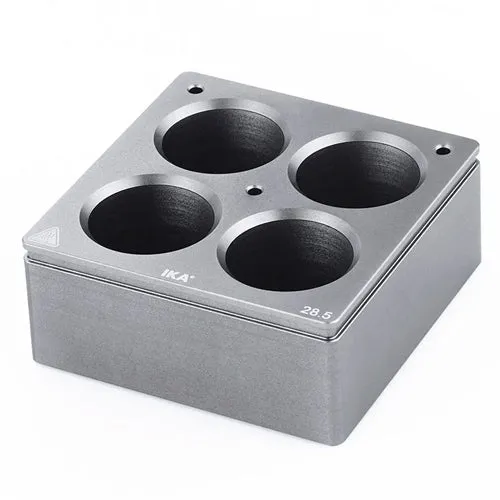

IKA® H 135.105 Block 4 x 30 ml, 25000630

The IKA H 135.105 is a flat-bottom aluminum heating block designed to hold four 30 ml vessels for temperature-controlled sample processing on compatible IKA magnetic stirrer hotplates. Its anodized aluminum construction ensures even heat transfer for reliable, uniform heating.

The block features 4 cylindrical holes (28.5 mm diameter, 33.5 mm depth) and supports working temperatures up to 300 °C. Either the H 135.10 support plate without handle or the H 135.11 support plate with handle is required to use the block.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Bottom shape	flat
Useable volume max.	30 ml
Number of holes	4
Hole diameter	28.5 mm
Hole depth	33.5 mm
Hole shape	cylindrical
Working temperature max.	300 °C
Material in contact with medium	Aluminum anodized
Dimensions (W x H x D)	79 x 35 x 79 mm
Weight	0.348 kg

Product Data Sheet
