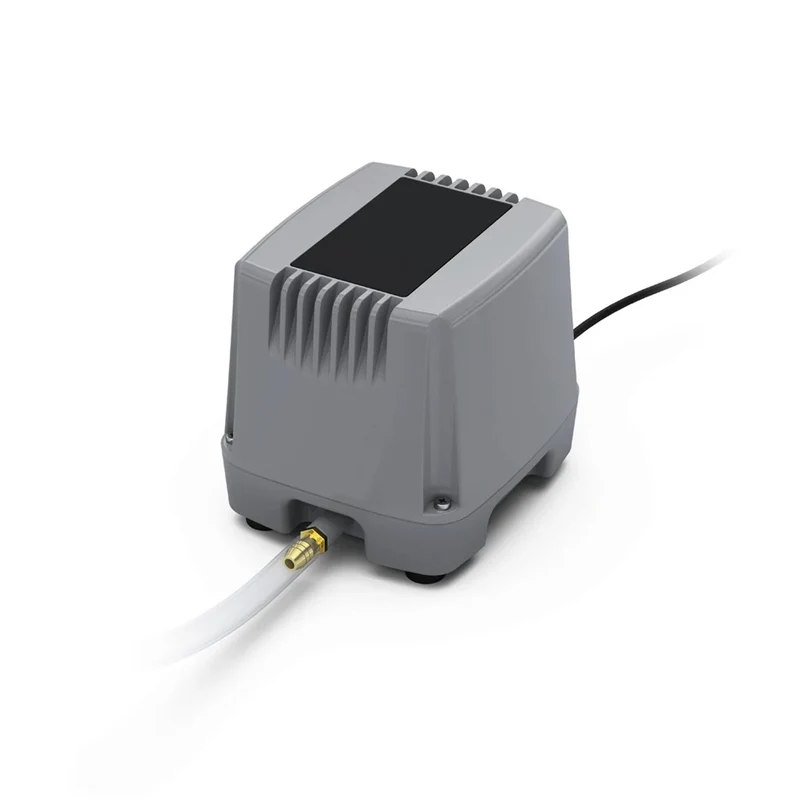

IKA® HA.ap Air Pump, 20111859

The IKA® HA.ap is an oil-free linear diaphragm air pump (Charles Austen) that provides continuous aeration to a bioreactor vessel. Part of the IKA HABITAT bioreactor ecosystem, it delivers up to 2000 ml/min at low noise (40 dB(A)), with aeration rates matched to working volumes from 0.25 l up to 5 l.

Key features:

• Oil-free linear diaphragm pump (Charles Austen ET 80) for clean, continuous aeration
• Maximum pump rate 2000 ml/min; maximum back pressure 0.1 bar
• Quiet operation at 40 dB(A)
• Aeration from 8 VVM (0.25 l) down to 0.4 VVM (5 l) working volume

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Pump rate max.	2000 ml/min
Back pressure max.	0.1 bar
Max. aeration rate (Air) @ 0.25 l	8 VVM
Max. aeration rate (Air) @ 0.5 l	4 VVM
Max. aeration rate (Air) @ 1.0 l	2 VVM
Max. aeration rate (Air) @ 2.0 l	1 VVM
Max. aeration rate (Air) @ 5.0 l	0.4 VVM
Pump model	Charles Austen ET 80
Noise level	40 dB(A)
Dimensions (W x H x D)	185 x 171 x 210 mm
Weight	7.0 kg
Voltage	230 V
Frequency	50/60 Hz
Power input	85 W

Product Data Sheet
