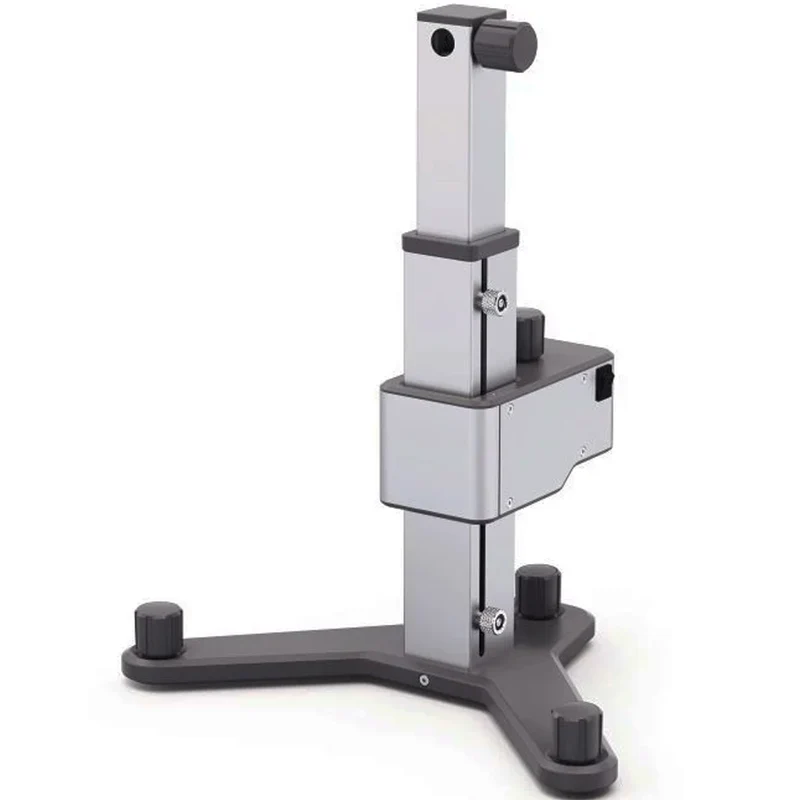

IKA® HELISTAND for Rotavisc Viscometers, 20116430

The HELISTAND is a motorized electrical stand for IKA Rotavisc viscometers. It moves the mounted viscometer and rotating body slowly and uniformly up and down through the sample, enabling reliable viscosity measurements of highly viscous, non-flowing samples.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Stroke max.	142 mm
Diameter	16 mm
Dynamic load	3.2 kg
Overload protection	yes
Height adjustable safety switch	yes
Dimensions (W x H x D)	351 x 330 x 262 mm
Weight	6 kg
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 40
Voltage	100 - 115 V
Frequency	50/60 Hz
Power input	7 W
Power input max.	7 W
Power input standby	0 W

Product Data Sheet
