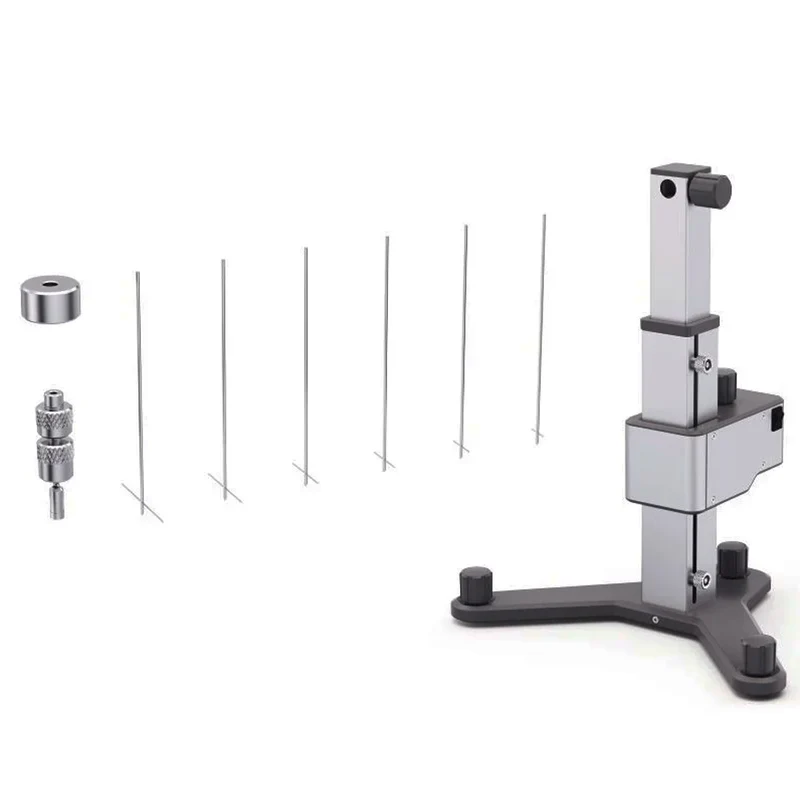

IKA® HELISTAND Set for Rotavisc Viscometer, 20128648

The motorized IKA HELISTAND Set enables reliable viscosity measurement of highly viscous samples such as creams, pastes, paints and gelatin. It moves the mounted viscometer and its rotating body slowly and uniformly up and down through the sample; because these substances would otherwise be forced to the edges by rotation and create an air channel around the rotating body, the slow helical movement keeps the acting torque meaningful. The set includes T-spindles for non-flowing samples so you can acquire dependable viscosity measurements.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Stroke max.	142 mm
Diameter	16 mm
Dynamic load	3.2 kg
Overload protection	yes
Height adjustable safety switch	yes
Dimensions (W x H x D)	351 x 330 x 262 mm
Weight	6 kg
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 40
Voltage	100 - 115 V
Frequency	50/60 Hz
Power input	7 W
Power input max.	7 W
Power input standby	0 W
