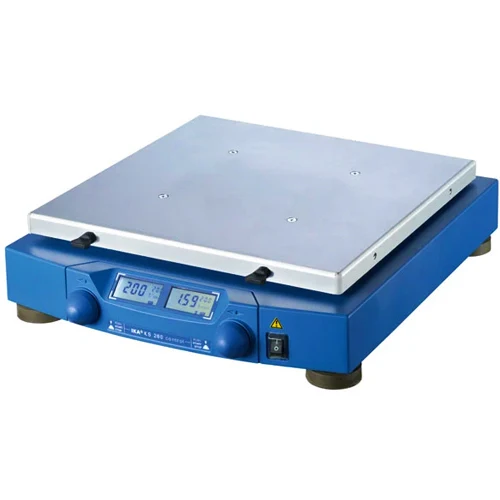

IKA® KS 260 Control Variable Speed Orbital Shaker, 2980301

The IKA KS 260 control is an open-air orbital shaker built for reliable, gentle mixing across demanding laboratory applications. Its compact, flat design fits easily into any workspace, while a large 320 x 320 mm platform and 7.5 kg maximum shaking weight accommodate a broad range of vessel shapes and sizes.

Speed and timer are electronically adjustable and shown on a digital LED display for precise, repeatable control. An integrated end-point positioning function supports automated, robot-controlled sampling, and an RS 232 interface allows external control and documentation through labworldsoft.

Package Includes:

• KS 260 control orbital shaker
• Attachment screws (4 pcs.)
• Single-head wrench

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Type of movement	orbital
Shaking stroke	10 mm
Permissible shaking weight (incl. attachment)	7.5 kg
Motor rating input	45 W
Motor rating output	10 W
Permissible ON time	100 %
Speed min (adjustable)	10 rpm
Speed range	0 - 500 rpm
Speed display	LED
Timer	yes
Timer display	LED
Time setting range	1 - 5999 min
Operating mode	timer and continuous operation
Shaking table lock	yes
Dimensions (W x H x D)	360 x 98 x 420 mm
Weight	8.8 kg
Permissible ambient temperature	5 - 50 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
RS 232 interface	yes
Analog output	yes
Voltage	100 - 120 V
Frequency	50/60 Hz
Power input	45 W
Fuse	2x T1A 250V
