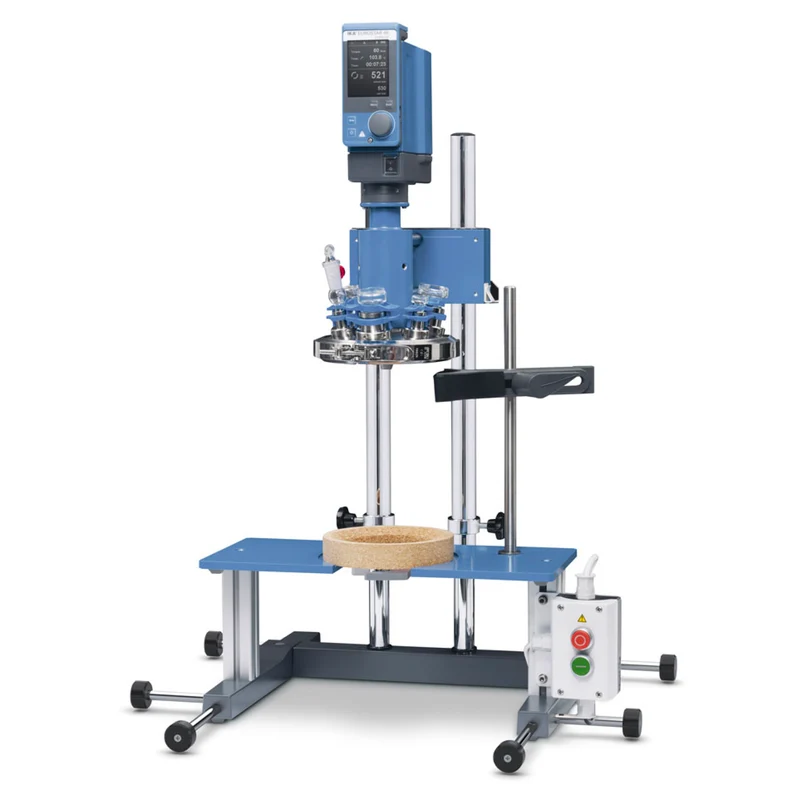

IKA® LR-2.ST High Viscosity Reactor System, 20013406

The IKA LR-2.ST the Compact Power is a modularly configured laboratory reactor for the optimization and reproduction of chemical reactions, mixing and homogenization processes on a lab scale. The system is particularly characterized by its agitator mounting, which allows the safe transfer of higher motor torque. ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.

Key features:

• Suitable for vacuum operation (attainable vacuum 25 mbar)
• Solvent- and temperature-resistant perfluoroelastomer (FFPM) seals in contact with the sample
• Infinitely variable speed with integrated torque trend display for measuring viscosity changes
• Microprocessor-controlled speed regulation holds the set speed constant, even under load
• Removable WiCo (wireless controller) for remote, safe operation in a fume hood
• Driven by a EUROSTAR 60 control laboratory stirrer (higher speed, no gear ranges)

Package Includes:

• LR-2.ST reactor stand system
• LR.SI safety switch
• Reactor cover (HEAD, REACTOR, LR2.10)
• EUROSTAR 60 control laboratory stirrer

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Useable volume	500 - 2000 ml
Useable volume with disperser tool (min.)	800 ml
Working temperature	-50 - 230 °C
Attainable vacuum	25 mbar
Viscosity max.	50000 mPas
Speed range	8 - 290 rpm
Telescope stand stroke	390 mm
Material in contact with medium	borosilicate glass, FFPM, PTFE, steel 1.4571
Reactor vessel openings (units/standard)	3 / NS 29/32, 2 / NS 14/23
Torque max. at stirring shaft	60 Ncm
Dimensions (W x H x D)	670 x 1240 x 580 mm
Weight	25 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %

Product Data Sheet | Product Manual
