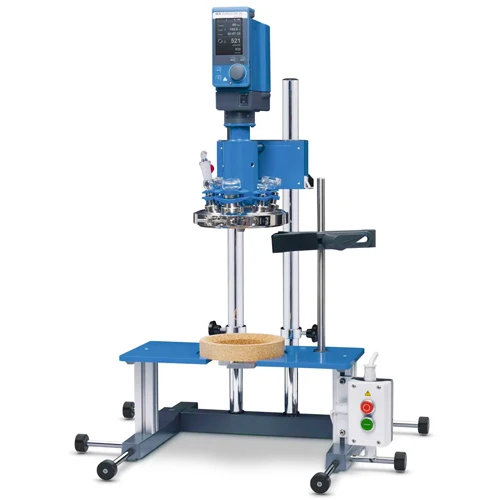

IKA® LR-2.ST the Versatile Laboratory Reactor System, 20013408

Modularly configured laboratory reactor system. ST means Stirring and Tempering in one. The LR 2 ST offers individual configuration and easy adaptation to new tasks. Used in synthesis, mixing, reactions, crystallizations, suspensions, extractions and distillations. 2 Liter working volume, sturdy and precise drives for high-quality synthesis. The Compact Power - economical system for standard reactions, with IKA® RET control-visc stirrer.

Package Includes:

• IKA® RET Control-visc Magnetic Hotplate Stirrer
• H 135.10 Carrier with handle
• LR 2.1 Reaction vessel
• LR 2000.10 Anchor stirrer
• LR 2000.40 Shaft receptacle
• LR 1000.70 Lid holder
• LR 2.SP Splinter Shield

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Useable volume	500 - 2000 ml
Working temperature	room temp. - 230 °C
Attainable vacuum	25 mbar
Viscosity max.	70000 mPas
Speed range	8 - 290 rpm
Telescope stand stroke	390 mm
Material in contact with medium	borosilicate glass, FFPM, PTFE, steel 1.4571
Reactor vessel openings (units/standard)	3/NS 29/32 2/NS 14/23
Torque max. at stirring shaft	100 Ncm
Dimensions (W x H x D)	460 x 1240 x 430 mm
Weight	34 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %

Product Manual
