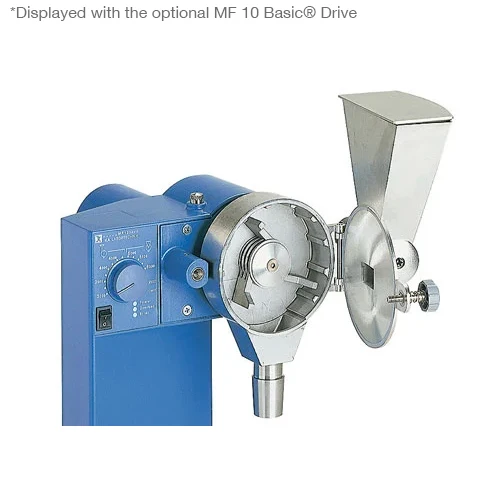

IKA® MF 10.2 Impact-Grinding Head for MF 10 Basic, 2871000

The IKA MF 10.2 impact-grinding head equips the MF 10 basic microfine grinder for crushing brittle, hard materials such as minerals and building materials up to Mohs hardness 6. Before being discharged, the ground material passes through an interchangeable sieve, available in different hole sizes (not included with delivery). The ground material can then be collected using an NS 29 standard round-bottom vessel.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Process type	inline
Circumferential speed max.	34 m/s
Feed hardness max.	6 Mohs
Feed grain size max.	10 mm
Material milling chamber	stainless steel 1.4308
Dimensions (W x H x D)	320 x 450 x 300 mm
Weight	2.942 kg
Permissible ambient temperature	5 - 40 °C

Product Manual
