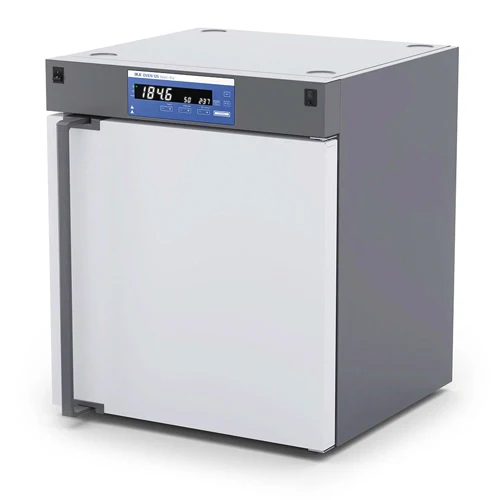

IKA® OVEN 125 Basic Dry Laboratory Oven, 20003216

Universal oven for tempering, drying, aging and heating applications in the laboratory. The IKA OVEN 125 basic dry covers applications in industry, schools and universities, research, quality control and science.

Fast heat-up times and precise temperature control guarantee reproducible test results. A special odorless insulation also ensures lower operating costs. The oven can be controlled by USB and test parameters can be recorded for further analysis. It features a temperature range of RT + 5 °C to 250 °C, 125 l capacity, electronically adjustable ventilation, a clear display and control menu, key lock function, timer and an adjustable temperature limit.

Package Includes:

• IKA OVEN 125 basic dry
• Wire grid tray, chrome plated (2 pcs.)
• Tilt protection (2 pcs.)
• Screwdriver (for adjustment of temperature limit)
• USB A-B cable
• Calibration certificate

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Heat output	2400 W
Working temperature	room temp. +5 - 250 °C
Adjustment and display resolution	0.1 K
Temperature stability (150°C, center, standard door)	±0.5 K
Temperature display	yes
Timer	yes
Timer display	7 segment LED
Time setting range	1 - 144000 min
Number of trays max.	6
Load for one tray max.	30 kg
Operating area inner chamber	550 x 525 x 450 mm
Total volume inner chamber	125 l
Air outlet port diameter inside	48 mm
Thermal safety devices according DIN 12880	TB class 1
Dimensions (W x H x D)	700 x 825 x 650 mm
Weight	74 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 20
USB interface	USB-B
Voltage	220 - 240 V
Frequency	50/60 Hz
Power input	2450 W
Power input standby	2 W

Product Data Sheet
