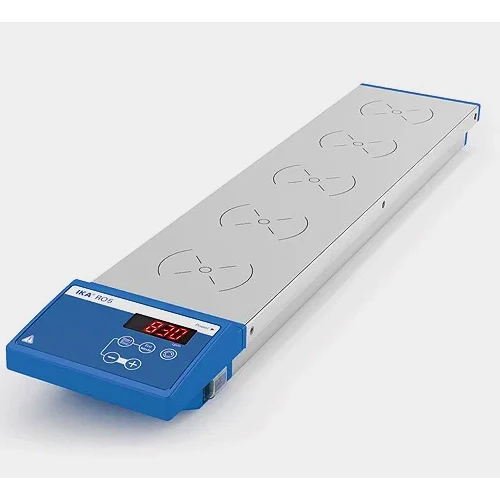

IKA® R 5 Multi Station Magnetic Stirrer, (5 x 0.4L), 3690500

The IKA® RO 5 Multi-Position Magnetic Stirrer is a 5-position digital stirrer without heating, designed for simultaneous and synchronized stirring of multiple samples. Advanced magnetic coil technology ensures quiet, uniform stirring performance across all positions, while maintaining a constant speed even under changing load conditions.

Its compact, sealed design protects the unit from liquid ingress and allows for quick and easy cleaning. A removable transparent anti-slip mat is included to enhance vessel stability during operation.

Features:

• Adjustable reverse operation
• Wear free magnetic coils
• Error code display
• Easy operation with touch keypad
• Suitable for continuous operation
• Speed range: 0 - 1200 rpm

Package Includes:

• IKA® RO 5 multi-position magnetic stirrer

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Number of stirring positions	5
Stirring quantity max. per stirring position (H2O)	0.4 l
Stirring quantity max. (H2O)	2 l
Stirring position distance	90 mm
Speed deviation of individual stirring positions	0 %
Speed display	LED line
Speed range	0 - 1200 rpm
Speed control	10 RPM Steps
Stirring bar length	25 - 30 mm
Set-up plate material	stainless steel 1.4301
Set-up plate dimensions	120 x 470 mm
Dimensions (W x H x D)	120 x 60 x 570 mm
Weight	3.66 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 40
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	13 W
DC Voltage	24 V=
Current consumption	500 mA

Product Data Sheet
