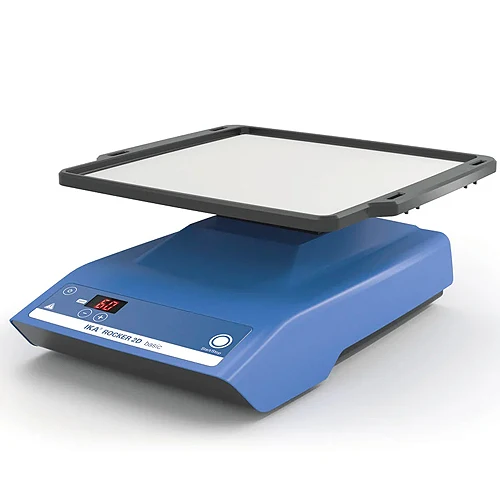

IKA® Rcker 2D Basic Rocking Shaker, 4002000

Rocking shaker (Rocker 2D basic) with fixed speed for smooth mixing tasks. Used for homogeneous mixing in flat vessels, Petri dishes, microwell plates, and similar applications. Two-dimensional rocking motion.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Type of movement	rocking
Permissible shaken weight (incl. fixture)	2 kg
Inclination angle of the shaking table	2.5 ... 15 °
Adjustment inclination angle of the shaking table	2.5 ° steps
Fixed inclination angle	8 °
Speed min.	5 rpm
Speed max.	80 rpm
Speed variation	10 %
Adjustment speed	1 rpm steps
Speed display	7-segment LED
Operating mode	continuous operation
Motor power consumption	16 W
Motor output power	9 W
Max. device power consumption	24 W
Dimensions (W x D x H)	280 x 330 x 150 mm
Weight	2.2 kg
Shaking table size (W x D)	235 x 235 mm
Perm. duration of operation	100 %
Perm. ambient temperature	+4 ... +50 °C
Perm. rel. humidity	80 %
Protection acc. DIN EN 60529	IP 21
Power supply input	100 - 240 V, 0.8 A, 50-60 Hz
Power supply output	24 VDC, 24 W LPS
Protection class	II (double insulated)
