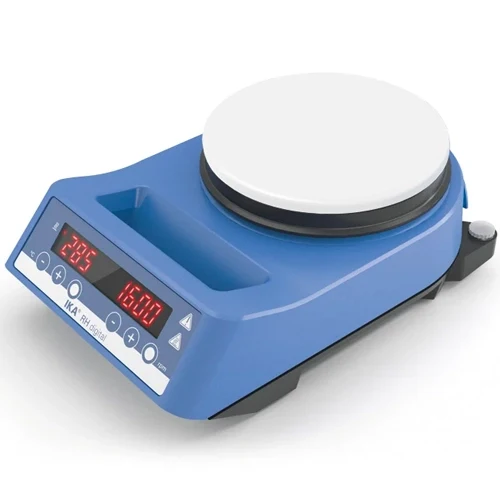

IKA® RH Digital Magnetic Hotplate Stirrer, Ceramic Tp, Max. Stirring 15L, 4678001

The IKA RH digital white is an innovatively designed digital magnetic stirrer with heating. Its white ceramic heating plate paired with a high 600 watt heat output delivers rapid heating and excellent chemical resistance, while a bushing to DIN 12878 lets you connect an electronic contact thermometer such as the ETS-D5 for highly accurate temperature control directly in the medium.

An LED display shows both speed and temperature set-values, and a touch keypad makes operation simple, with error codes shown for added safety. A brushless EC motor delivers a strong magnetic field and wide speed range for volumes up to 15 liters, and the soft-start feature protects the stir bar. An adjustable safety temperature from 100 to 360 °C provides further process security.

Package Includes:

• RH digital white magnetic stirrer
• IKAFLON® 20 magnetic stirring bar
• IKAFLON® 30 magnetic stirring bar
• IKAFLON® 40 magnetic stirring bar
• H 103 cover for RH digital
• H 102.1 protection handle
• Screwdriver (for safety circuit)

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	15 l
Motor rating output	2 W
Direction of rotation	left
Speed display set-value	LED
Speed control	Button
Speed range	100 - 2000 rpm
Setting accuracy speed	50 rpm
Stirring bar length	20 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)	+28 K
Heat output	600 W
Temperature display set-value	LED
Temperature unit	°C
Heating temperature range	50 - 320 °C
Heat control	Button
Temperature setting range	50 - 320 °C
Heating rate heating plate	6 K/min
Connection for ext. temperature sensor	ETS-D5
Adjustable safety circuit	100 - 360 °C
Set-up plate material	technical enamel
Set-up plate dimensions	Ø 135 mm
Dimensions (W x H x D)	160 x 100 x 250 mm
Weight	3.845 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
Voltage	230 / 115 / 100 V
Frequency	50/60 Hz
Power input	620 W

Product Data Sheet | Product Manual
