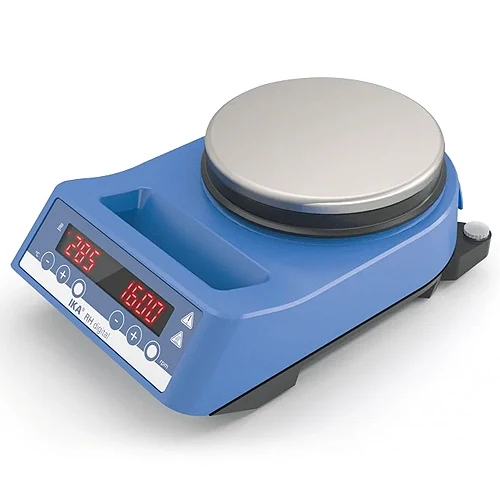

IKA® RH Digital Magnetic Hotplate Stirrer, Max. Stirring 15L, 5019801

The IKA RH digital is an innovatively designed digital magnetic stirrer with heating, giving you precise, repeatable control for demanding laboratory work. A DIN 12878 bushing lets you connect an electronic contact thermometer such as the ETS-D5 for highly accurate temperature control with the sensor placed directly in the medium.

A high 600 watt heat output combined with a stainless steel compound hot plate ensures rapid heating, and an adjustable safety temperature from 100 to 360 °C keeps operation safe. Digital displays for both speed and temperature, plus an error code display, make it easy to monitor every run.

Package Includes:

• RH digital magnetic stirrer
• IKAFLON 20 magnetic stirring bar
• IKAFLON 30 magnetic stirring bar
• IKAFLON 40 magnetic stirring bar
• H 103 cover for RH digital
• H 102.1 protection handle
• Screwdriver (for safety circuit)

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	15 l
Motor rating output	2 W
Direction of rotation	left
Speed display set-value	LED
Speed adjustment	Button
Speed range	100 - 2000 rpm
Setting accuracy speed	50 rpm
Stirring bar length	20 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)	+28 K
Heat output	600 W
Temperature display set-value	LED
Temperature unit	°C
Heating temperature range	50 - 320 °C
Heat control	Button
Temperature setting range	50 - 320 °C
Heating rate heating plate	6 K/min
Connection for ext. temperature sensor	ETS-D5
Adjustable safety circuit	100 - 360 °C
Set-up plate material	stainless steel 1.4301
Set-up plate dimensions	Ø 135 mm
Dimensions (W x H x D)	160 x 100 x 250 mm
Weight	3.845 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
Voltage	115 V
Frequency	50/60 Hz
Power input	620 W

Product Data Sheet | Product Manual
