IKA® RV 10 Auto PR FLEX Rotary Evaporator w/o Glassware, 10005197

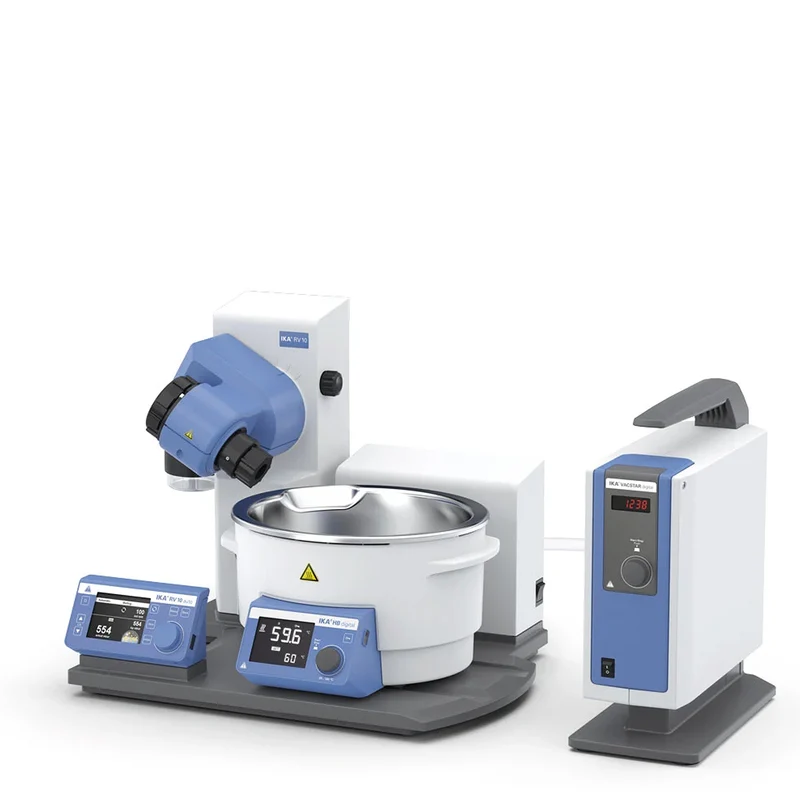

The IKA RV 10 Auto Pro FLEX is the flagship drive of IKA's rotary evaporator line, built for efficient, safe, and economical distillation. It pairs a brilliant high-contrast TFT color graphic display with an integrated vacuum controller, automatic cooling-water management, and automatic boiling point detection, so routine evaporations run with minimal operator input. The motorized lift with safety-stop automatically raises the flask out of the heating bath in the event of a power failure.

The FLEX configuration ships as a flexible base system: the RV 10 auto drive, the HB digital heating bath, and the space-saving VACSTAR digital vacuum pump, together with vapor tube, clamps, seal, and hoses. It is supplied without a glass condenser set so you can select the coated or uncoated vertical or diagonal glassware that best suits your application. Extended ramp programming, interval and right/left rotation, a timer function, and a 40-solvent library round out everyday lab versatility.

Key features:

• Bright, high-contrast TFT color graphic control panel with intuitive menu navigation
• Integrated vacuum controller with automatic boiling point detection and cooling-water management
• Motorized lift with safety-stop that withdraws the flask on power loss
• 4-liter universal safety heating bath, room temperature to 180 deg C
• Extended programming for up to ten procedures, plus soft start, interval and right/left rotation, and timer
• USB and RS-232 interfaces for remote control via labworldsoft and firmware updates; 40-solvent library

Package Includes:

• RV 10 auto drive unit
• HB digital S099 heating bath
• VACSTAR digital vacuum pump
• RV 05.10 ball-joint clamp
• RV 10.89 clamp NS 24
• RV 10.73 vapor tube (NS 24/40)
• RV 10.8001 seal
• Vacuum hose (2 x 0.55 m)
• Water discharge hose (2 x 1 m)
• USB cable
• Glassware not included (coated or uncoated condenser sets available separately)

Country of Origin: Germany

Warranty: Comes with 2+3 Year Manufacturer's Warranty (2+1 on the included VACSTAR vacuum pump). See details here

Specifications:

Type of cooling	Without condenser (glassware selected separately)
Speed range	5 - 300 rpm
Reversible direction of rotation	Yes
Speed tolerance (set speed < 100 rpm)	±1 rpm
Speed tolerance (set speed > 100 rpm)	±1 %
Lift	Motor
Stroke	140 mm
Heating temperature range	Room temp. - 180 deg C
Heat output	1350 W
Set temperature resolution	1 K
Filling volume max.	4 l
Vacuum controller integrated	Yes
Measurement accuracy +/-	1 mbar
Timer	Yes
Dimensions (W x H x D)	500 x 430 x 440 mm
Weight	18.6 kg
Permissible ambient temperature	5 - 40 deg C
Permissible relative humidity	80 %
Protection class (DIN EN 60529)	IP 20
RS-232 interface	Yes
USB interface	Micro-USB
Analog output	Yes
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	100 W
Power input standby	3.3 W
