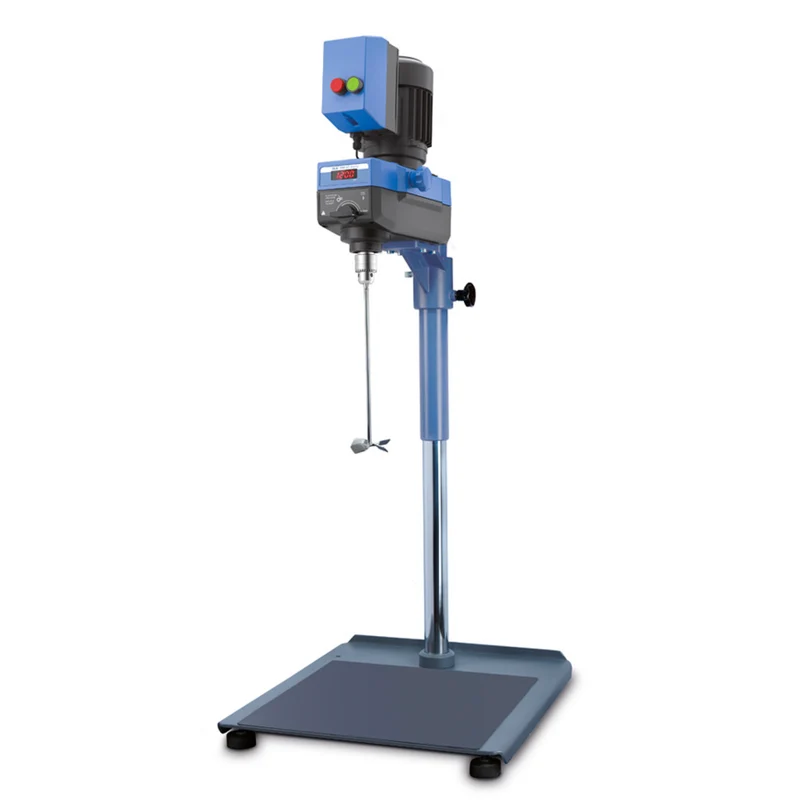

IKA® RW 47 Digital Package Overhead Stirrer, Max. Stirring 200L, 10000663

The IKA® RW 47 digital Package is an extremely powerful, mechanically controlled overhead stirrer built for highly viscous applications and large batch sizes — up to 200 liters (H2O) per stirring position. It is suited to intensive mixing in laboratories and pilot plants, and includes overheating protection via a self-locking temperature limiter. Note: the RW 47 runs on a three-phase supply; the mains cord is not included, and connection to the power supply must be carried out by a qualified electrician.

Key features:

• Up to 200 l (H2O) stirring capacity; handles viscosities up to 100,000 mPas
• Three-phase motor, 370 W output, high 3000 Ncm max torque at the shaft
• Stepless digital speed control with LED display and two speed ranges
• Self-locking temperature limiter for motor overheat protection
• IP 54 housing

Package Includes:

• RW 47 digital drive
• R 2302 propeller stirrer
• R 474 telescopic stand

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Stirring quantity max. (H2O)	200 l
Viscosity max.	100000 mPas
Motor rating (input / output)	490 W / 370 W
Motor principle	three-phase current
Speed range (60 Hz)	69 - 1560 rpm
Speed control	stepless
Output max. at stirring shaft	300 W
Torque max. at stirring shaft	3000 Ncm
Housing material	alu-cast coating / thermoplastic polymer
Protection class	IP 54
Dimensions (W x H x D)	145 x 465 x 358 mm
Weight	16 kg

Product Data Sheet
