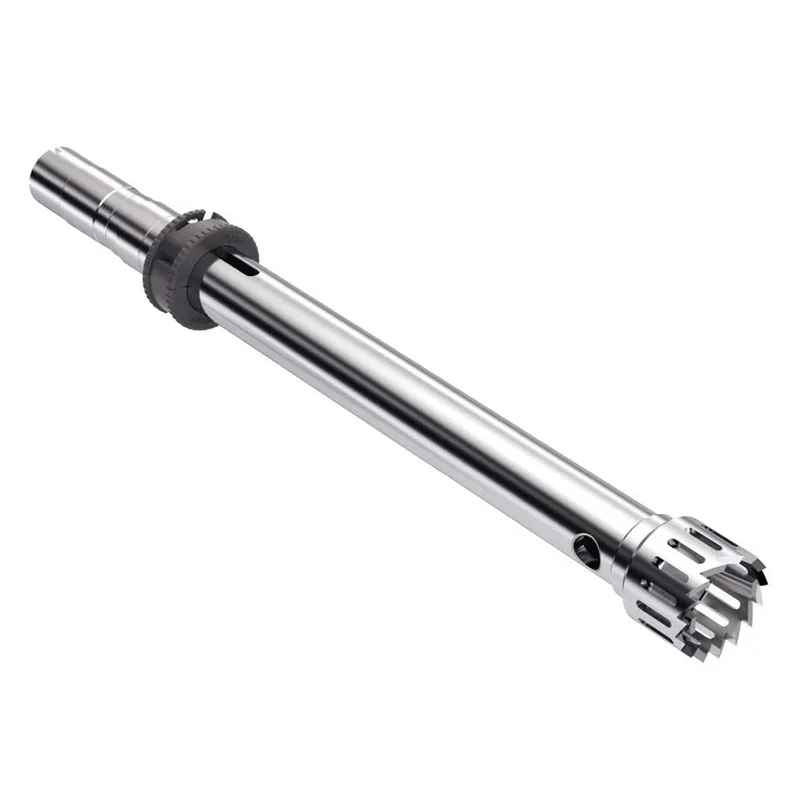

IKA® S 25 EC - C - 25 G - ST Dispersing Element, Vol. Range 50 - 2,000ml, 25002590

The IKA S 25 EC-C-25 G-ST is a stainless steel easy-clean (EC) dispersing element for the ULTRA-TURRAX T 25 easy clean family of dispersers, particularly suited to dispersing applications in the cosmetics, pharma, and food industries. Its standard-tooth (G) stator handles a working volume of 50–2,000 ml, with AISI 316L stainless steel and ceramic wetted parts.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.05 - 2 l
Stator diameter	25 mm
Rotor diameter	20 mm
Gap between rotor and stator	0.5 mm
allowable Speed max.	25000 rpm
Circumferential speed max.	26.2 m/s
Immersion depth	35 - 150 mm
Shaft length	191 mm
Material in contact with medium	AISI 316L, ceramic
pH range	2 - 13
Suitable for solvents	yes
Suitable for abrasive substances	yes
Working temperature max.	180 °C
Sterilization methods	all methods
Ultimate fineness, suspensions	15 - 50 µm
Ultimate fineness, emulsions	1 - 10 µm
Weight	0.4 kg

Product Data Sheet | Product Manual
