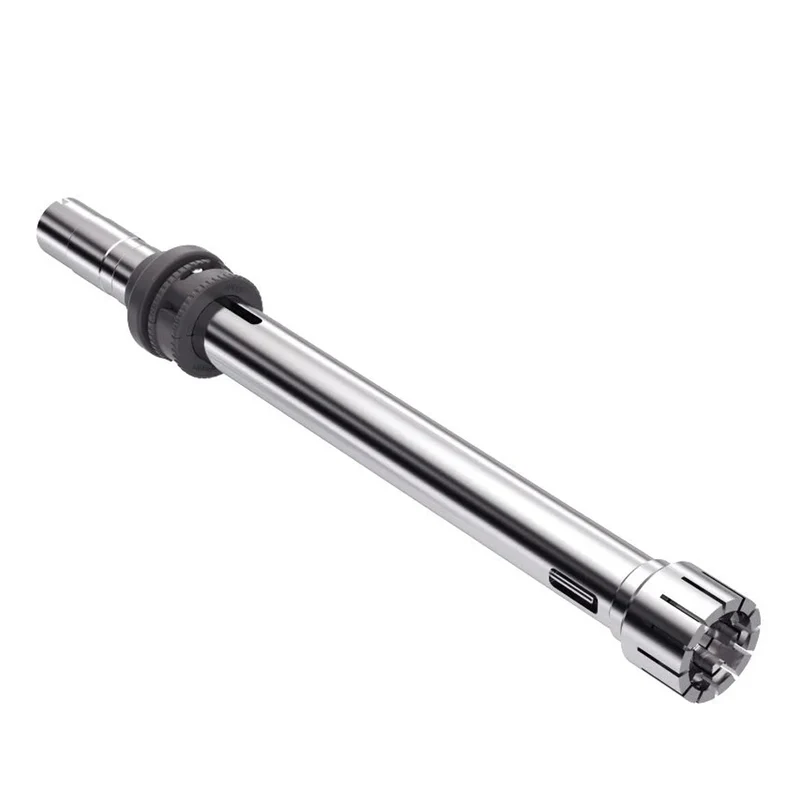

IKA® S 25 EC - T - C - 25 F Dispersing Element, Vol. Range 100 - 2,000ml, 25007199

The IKA S 25 EC-T-C-25 F is an autoclavable, stainless steel easy-clean (EC) dispersing element with an integrated temperature sensor (T) for the ULTRA-TURRAX T 25 easy clean family of dispersers, particularly suited to fine dispersing applications in cosmetics. Its fine-tooth (F) stator delivers a finer result and handles a working volume of 10–2,000 ml, with AISI 316L stainless steel and ceramic wetted parts.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.01 - 2 l
Stator diameter	25 mm
Rotor diameter	18 mm
Gap between rotor and stator	0.5 mm
allowable Speed max.	25000 rpm
Circumferential speed max.	23.6 m/s
Immersion depth	45 - 150 mm
Shaft length	191 mm
Material in contact with medium	AISI 316L, ceramic
pH range	2 - 13
Suitable for solvents	yes
Suitable for abrasive substances	yes
Temperature measuring range	0 - 125 °C
Accuracy of temperature measurement	±1 K
Working temperature max.	120 °C
Sterilization methods	all methods except hot air
Ultimate fineness, suspensions	5 - 25 µm
Ultimate fineness, emulsions	1 - 5 µm
Weight	0.634 kg

Product Data Sheet | Product Manual
