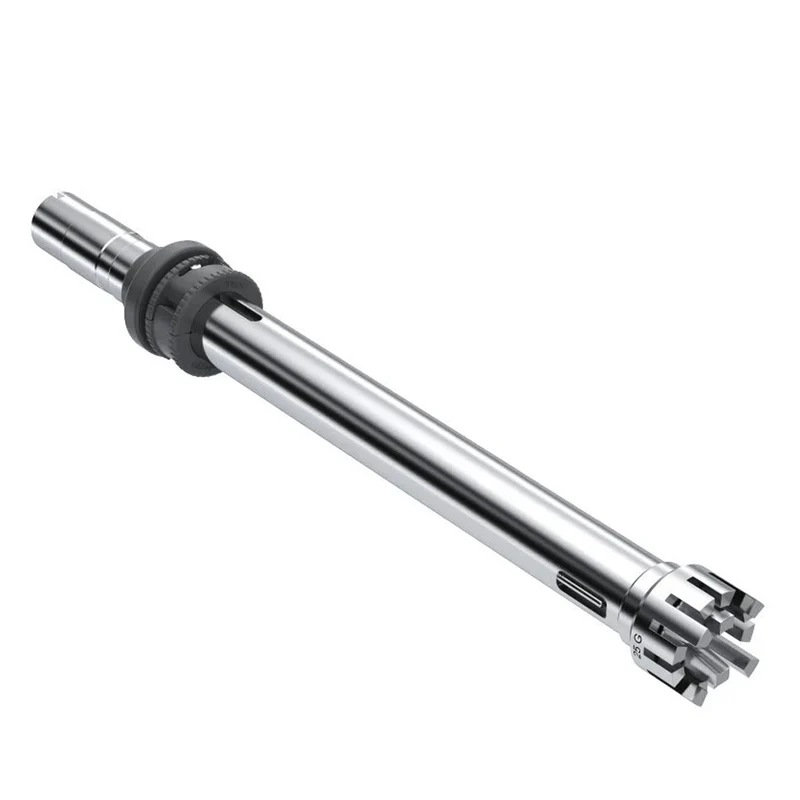

IKA® S 25 EC - T - C - 25 G Dispersing Element, Vol. Range 50 - 2,000ml, 20108999

The IKA S 25 EC-T-C-25 G is an autoclavable easy-clean dispersing element with an integrated temperature sensor (T) for high-speed dispersing, emulsifying, and homogenizing of miscible and immiscible media. It is designed exclusively for the T 25 easy clean digital and T 25 easy clean control ULTRA-TURRAX dispersers, and its temperature-sensing function works in combination with the T 25 easy clean control. Wetted parts are stainless steel (AISI 316L) and ceramic.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.05 - 2 l
Stator diameter	25 mm
Rotor diameter	17 mm
Gap between rotor and stator	0.5 mm
allowable Speed max.	25000 rpm
Circumferential speed max.	22.2 m/s
Immersion depth	45 - 150 mm
Material in contact with medium	AISI 316L, ceramic SiC
pH range	2 - 13
Suitable for solvents	yes
Suitable for abrasive substances	yes
Temperature measurement	yes
Accuracy of temperature measurement	±0.5 K
Working temperature max.	120 °C
Sterilization methods	all methods except hot air
Ultimate fineness, suspensions	15 - 50 µm
Ultimate fineness, emulsions	1 - 10 µm

Product Manual
