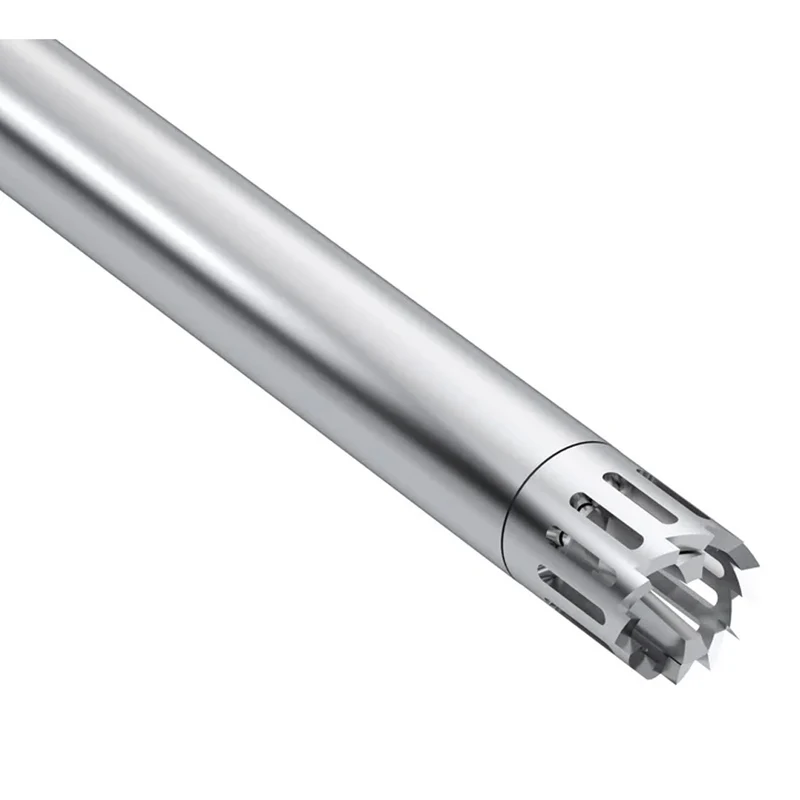

IKA® S 25 KD - 18 G ST Dispersing Element, Vol. Range 10 - 1,500ml, 20002973

The IKA S 25 KD-18 G ST is a stainless steel saw-tooth dispersing element for the T 25 digital and T 25 easy clean ULTRA-TURRAX dispersers, used for high-speed dispersing, emulsifying, and homogenizing of small to medium batches. The ST construction is well suited to aggressive solvents.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.01 - 1.5 l
Stator diameter	18 mm
Rotor diameter	13.4 mm
Gap between rotor and stator	0.25 mm
allowable Speed max.	25000 rpm
Circumferential speed max.	17.5 m/s
Immersion depth	40 - 165 mm
Shaft length	194 mm
Material in contact with medium	AISI 316L, PTFE, FFPM
pH range	2 - 13
Suitable for solvents	yes
Working temperature max.	150 °C
Sterilization methods	all methods except hot air
Vacuum	100 mbar
Ultimate fineness, suspensions	10 - 50 µm
Ultimate fineness, emulsions	1 - 10 µm
FDA conformity	yes
Weight	0.3785 kg

Product Data Sheet  |  Product Manual
