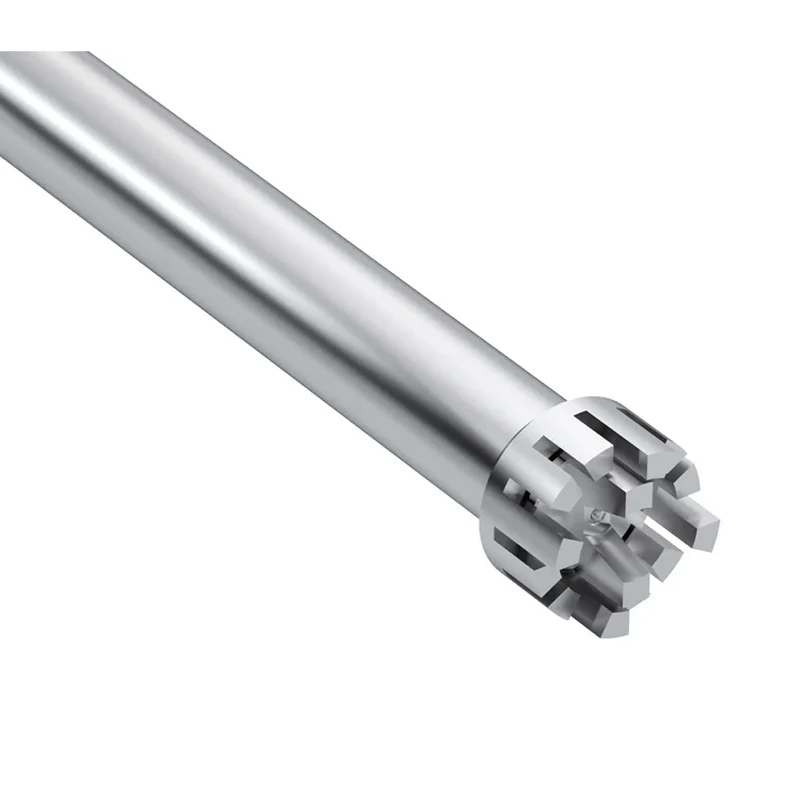

IKA® S 25 KD - 25 G Dispersing Element, Vol. Range 50 - 2,000ml, 20002972

The IKA S 25 KD-25 G is a standard (coarse, G-type) dispersing element for the T 25 digital and T 25 easy clean ULTRA-TURRAX dispersers, used for high-speed dispersing, emulsifying, and homogenizing across a wide volume range of 50–2,000 ml. It is built with AISI 316L stainless steel and PTFE / FFKM wetted parts, with a ball-bearing and sealing design.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.05 - 2 l
Stator diameter	25 mm
Rotor diameter	17 mm
Gap between rotor and stator	0.5 mm
allowable Speed max.	25000 rpm
Circumferential speed max.	22.2 m/s
Immersion depth	40 - 165 mm
Shaft length	194 mm
Material in contact with medium	AISI 316L, PTFE, FFPM
pH range	2 - 13
Suitable for solvents	yes
Working temperature max.	150 °C
Sterilization methods	all methods except hot air
Vacuum	100 mbar
Ultimate fineness, suspensions	15 - 50 µm
Ultimate fineness, emulsions	1 - 10 µm
FDA conformity	yes
Weight	0.3509 kg

Product Data Sheet | Product Manual
