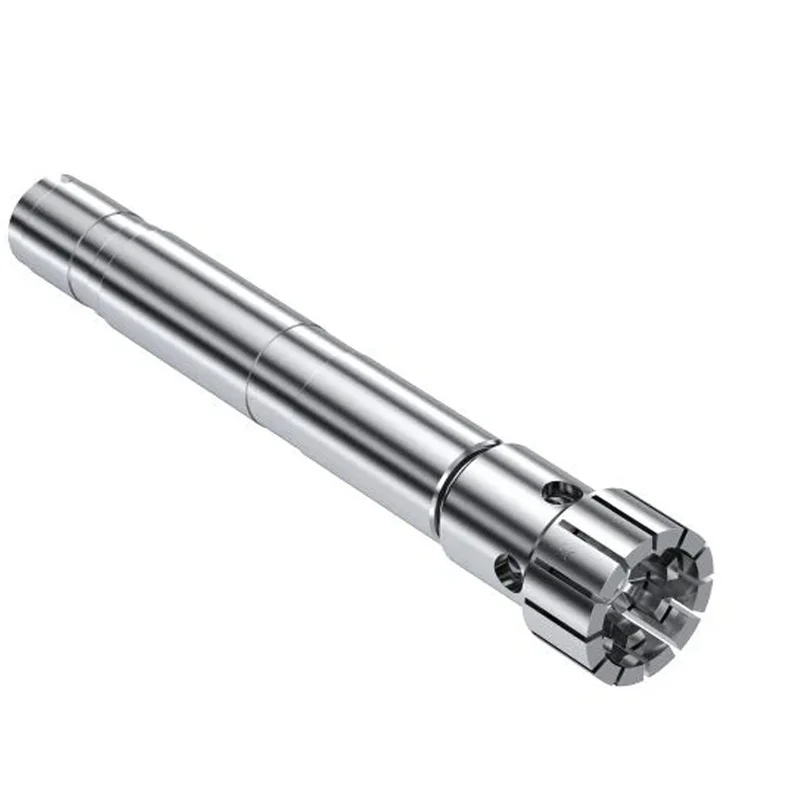

IKA® S 25 KV - 25 F - IL Dispersing Element for UTL 25 Inline Disperser, 2830200

The IKA S 25 KV-25 F-IL is a dispersing element designed exclusively for the UTL 25 inline disperser. Its fine (F-type, slotted) rotor-stator generator targets finer dispersing and emulsifying duties, with a 25 mm stator, 18 mm rotor and a 0.5 mm rotor-stator gap that produces suspension finenesses of 5-25 µm and emulsion finenesses of 1-5 µm. The completely sealed internal system prevents samples from entering the main drive and allows safe operation in a horizontal in-line position.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

For use with	UTL 25 digital inline disperser
Stator diameter	25 mm
Rotor diameter	18 mm
Gap between rotor and stator	0.5 mm
allowable Speed max.	25000 rpm
Circumferential speed max.	23.6 m/s
Immersion depth	40 - 85 mm
Shaft length	110 mm
Material in contact with medium	FFPM, SiC, AISI 316L, AISI 302
pH range	2 - 13
Suitable for solvents	yes
Working temperature max.	220 °C
Sterilization methods	all methods
Vacuum	1 mbar
Pressure max.	6 bar
Ultimate fineness, suspensions	5 - 25 µm
Ultimate fineness, emulsions	1 - 5 µm

Product Data Sheet
