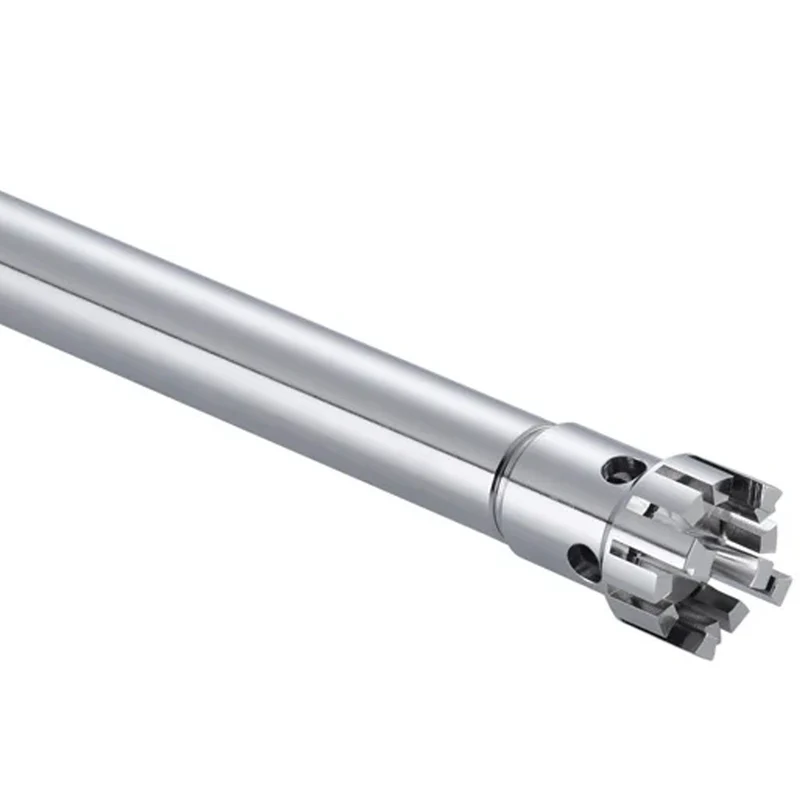

IKA® S 25 KV - 25 G Dispersing Element, Vol. Range 50 - 2,000ml, 2466900

The IKA S 25 KV-25 G is a high-performance dispersing element for the T 25 digital ULTRA-TURRAX disperser, used for high-speed dispersing, emulsifying, and homogenizing across a wide volume range. Its FFPM/SiC seal and stainless steel construction handle solvents and abrasive media up to 220 °C.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.05 - 2 l
Stator diameter	25 mm
Rotor diameter	17 mm
Gap between rotor and stator	0.5 mm
allowable Speed max.	25000 rpm
Circumferential speed max.	22.2 m/s
Immersion depth	40 - 225 mm
Shaft length	270 mm
Material in contact with medium	FFPM, SIC, AISI 316L, AISI 302
pH range	2 - 13
Suitable for solvents	yes
Working temperature max.	220 °C
Sterilization methods	all methods
Vacuum	1 mbar
Pressure max.	6 bar
Ultimate fineness, suspensions	15 - 50 µm
Ultimate fineness, emulsions	1 - 10 µm
Weight	0.6 kg

Product Data Sheet  |  Product Manual
