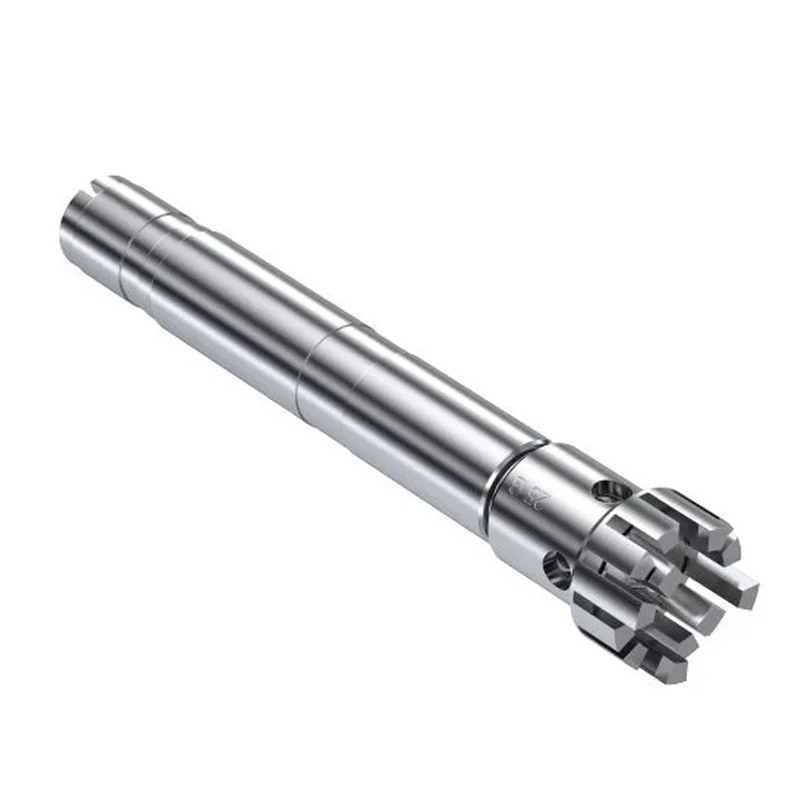

IKA® S 25 KV - 25 G - IL Dispersing Element for UTL 25 Inline Disperser, 2563000

The IKA S 25 KV-25 G-IL is a dispersing element designed exclusively for the UTL 25 inline disperser. It features a coarse (G-type) rotor-stator generator for handling more viscous media and larger particles, with a 25 mm stator, 17 mm rotor and a 0.5 mm rotor-stator gap that produces suspension finenesses of 15-50 µm and emulsion finenesses of 1-10 µm.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

For use with	UTL 25 digital inline disperser
Stator diameter	25 mm
Rotor diameter	17 mm
Rotor-stator gap	0.5 mm
Max. speed	25,000 rpm
Max. circumferential speed	22.2 m/s
Shaft length / immersion depth	110 mm / 40-85 mm
Fineness (suspension / emulsion)	15-50 µm / 1-10 µm
Material in contact with medium	FFPM, SiC, AISI 316L, AISI 302

Product Data Sheet
