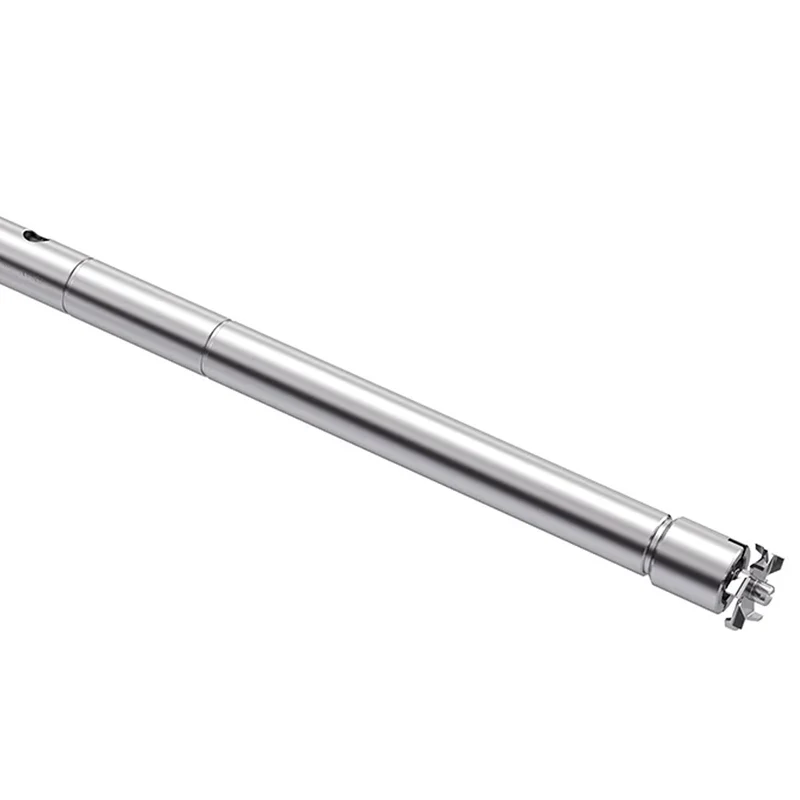

IKA® S 25 KV - 26 LR Disperser / Dissolver Stirrer, 20015397

The IKA S 25 KV-26 LR is a long-reach dispersing/dissolving stirrer for batch processing, combining rotor-stator dispersing with a dissolver action for rapidly mixing, dissolving and de-agglomerating pigments and powders. With a 25 mm stator, 25 mm rotor, 0.5 mm gap and an extended 270 mm shaft, it handles water volumes of 0.1-2 L and reaches finenesses of 5-25 µm (suspensions) and 1-5 µm (emulsions).

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.1-2 L
Stator diameter	25 mm
Rotor diameter	25 mm
Rotor-stator gap	0.5 mm
Max. speed	25,000 rpm
Max. circumferential speed	32.7 m/s
Shaft length / immersion depth	270 mm / 40-225 mm
Fineness (suspension / emulsion)	5-25 µm / 1-5 µm
Material in contact with medium	FFPM, SiC, AISI 316L, AISI 302
Weight	0.55 kg

Product Data Sheet | Product Manual
