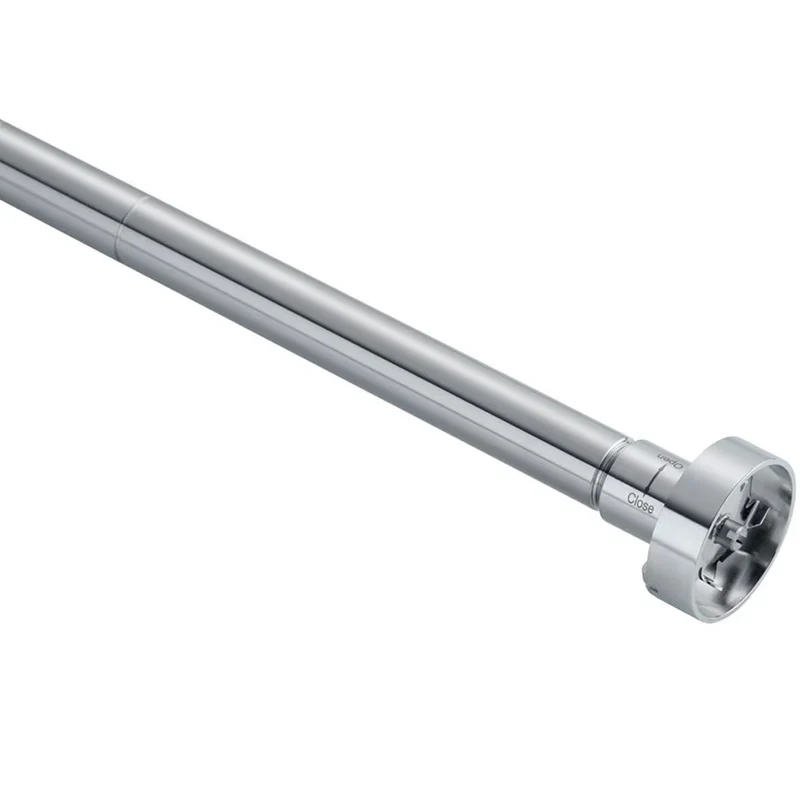

IKA® S 25 KV - 2802 High Speed Dissolver Agitatr Shaft, 20008825

The IKA S 25 KV-2802 is a high-speed dissolver/agitator shaft for the T 25 digital ULTRA-TURRAX disperser, used for intensive mixing, dissolving, and disagglomeration. Its toothed dissolver disc and FFPM/SiC seal with stainless steel construction handle solvents and abrasive media up to 220 °C.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.1 - 2 l
Stator diameter	39 mm
Rotor diameter	30 mm
allowable Speed max.	25000 rpm
Circumferential speed max.	39.3 m/s
Immersion depth	40 - 225 mm
Shaft length	270 mm
Material in contact with medium	FFPM, SIC, AISI 316L, AISI 302
pH range	2 - 13
Suitable for solvents	yes
Working temperature max.	220 °C
Sterilization methods	all methods
Vacuum	1 mbar
Pressure max.	6 bar
FDA conformity	yes
Weight	0.56 kg

Product Data Sheet  |  Product Manual
