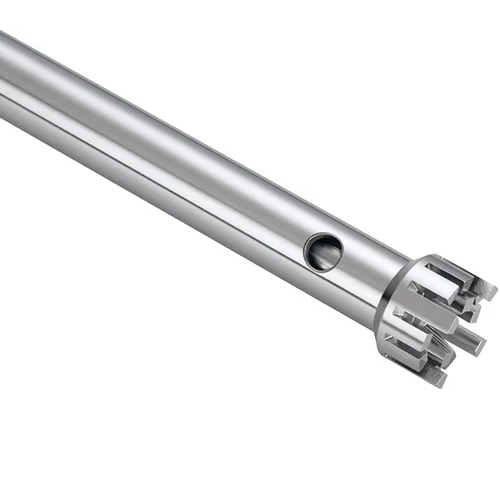

IKA® S 25 N - 25 G Dispersing Element, Vol. Range 50 - 2,000 ml, 1713300

The IKA S 25 N-25 G is a stainless steel dispersing element (generator) for the ULTRA-TURRAX T 25 family of dispersers, designed for larger-batch homogenizing, emulsifying, and suspending. Its standard-tooth (G) stator handles a working volume of 50–2,000 ml, with PTFE and AISI 316L wetted parts for use with solvents and abrasive media.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.05 - 2 l
Stator diameter	25 mm
Rotor diameter	17 mm
Gap between rotor and stator	0.5 mm
allowable Speed max.	25000 rpm
Circumferential speed max.	22.2 m/s
Immersion depth	40 - 165 mm
Shaft length	194 mm
Material in contact with medium	PTFE, AISI 316L
pH range	2 - 13
Suitable for solvents	yes
Suitable for abrasive substances	yes
Working temperature max.	180 °C
Sterilization methods	all methods
Ultimate fineness, suspensions	15 - 50 µm
Ultimate fineness, emulsions	1 - 10 µm
Weight	0.416 kg

Product Data Sheet | Product Manual
