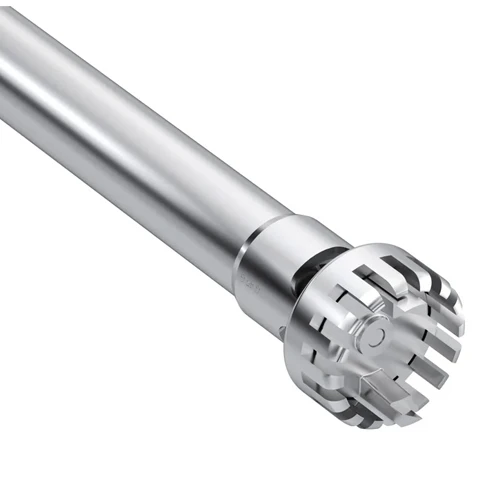

IKA® S 50 KD - G 45 G Dispersing Element, Vol. Range 500ml - 20L, 10000629

The IKA S 50 KD-G 45 G is a coarse-tooth (G) dispersing element for the ULTRA-TURRAX T 50 digital disperser, built with a sealed KD bearing for solvent and vacuum applications. Its wetted parts of FFPM, PTFE and AISI 316L stainless steel suit aggressive media, and it handles batches of roughly 0.5 to 20 liters (water).

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.5 - 20 l
Stator diameter	45 mm
Rotor diameter	36 mm
Gap between rotor and stator	0.5 mm
allowable Speed max.	10000 rpm
Circumferential speed max.	18.8 m/s
Immersion depth	70 - 260 mm
Shaft length	300 mm
Material in contact with medium	FFPM, PTFE, AISI 316L
pH range	2 - 13
Suitable for solvents	yes
Working temperature max.	150 °C
Sterilization methods	autoclavable
Vacuum	100 mbar
Ultimate fineness, suspensions	40 - 100 µm
Ultimate fineness, emulsions	10 - 30 µm
Weight	0.9855 kg
