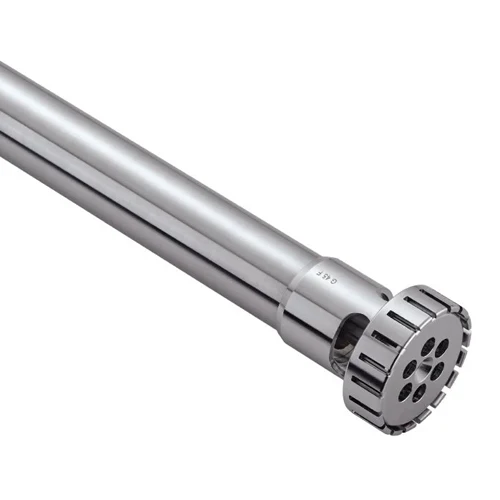

IKA® S 50 KD - G45F Dispersing Element, Vol. Range 250ml - 10L, 10000631

The IKA S 50 KD-G45F is a fine-tooth (F) KD dispersing element for the ULTRA-TURRAX T 50 digital disperser. Its slotted fine geometry, sealed KD bearing and FFPM, PTFE and AISI 316L wetted parts suit solvent and vacuum work and deliver the finest results of the S 50 KD range, covering batches of roughly 0.25 to 10 liters (water).

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.25 - 10 l
Stator diameter	45 mm
Rotor diameter	40 mm
Gap between rotor and stator	0.5 mm
allowable Speed max.	10000 rpm
Circumferential speed max.	20.9 m/s
Immersion depth	70 - 260 mm
Shaft length	300 mm
Material in contact with medium	FFPM, PTFE, AISI 316L
pH range	2 - 13
Suitable for solvents	yes
Working temperature max.	150 °C
Sterilization methods	autoclavable
Vacuum	100 mbar
Ultimate fineness, suspensions	10 - 30 µm
Ultimate fineness, emulsions	1 - 10 µm
Weight	0.658 kg

Product Data Sheet  |  Product Manual
