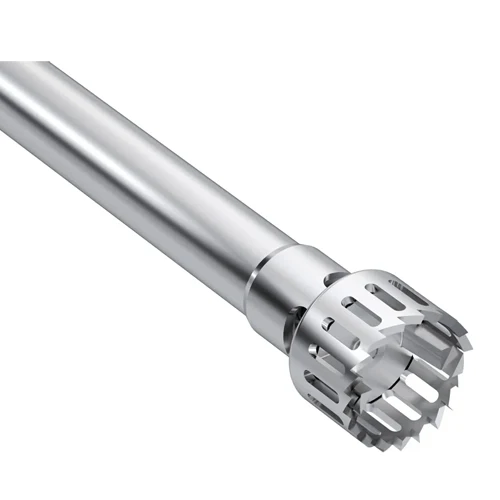

IKA® S 50 KD - G45G ST Dispersing Element,Vol. Range 500ml - 20L, 10000632

The IKA S 50 KD-G45G-ST is the stainless-steel (ST) version of the coarse-tooth (G) KD dispersing element for the ULTRA-TURRAX T 50 digital disperser. The sealed KD bearing and FFPM, PTFE and AISI 316L wetted parts make it suitable for solvents and vacuum work, covering batches of roughly 0.5 to 20 liters (water).

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.5 - 20 l
Stator diameter	45 mm
Rotor diameter	38 mm
Gap between rotor and stator	0.5 mm
allowable Speed max.	10000 rpm
Circumferential speed max.	19.9 m/s
Immersion depth	70 - 260 mm
Shaft length	300 mm
Material in contact with medium	FFPM, PTFE, AISI 316L
pH range	2 - 13
Suitable for solvents	yes
Working temperature max.	150 °C
Sterilization methods	autoclavable
Vacuum	100 mbar
Ultimate fineness, suspensions	40 - 100 µm
Ultimate fineness, emulsions	10 - 30 µm
Weight	0.71 kg

Product Data Sheet  |  Product Manual
