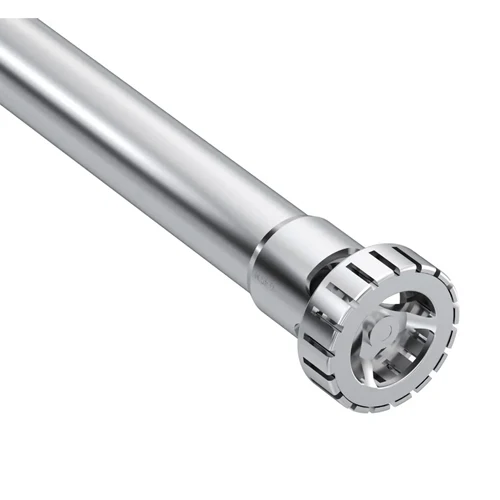

IKA® S 50 KD - G45M Dispersing Element, Vol. Range 500ml - 15L, 10000630

The IKA S 50 KD-G45M is a medium-tooth (M) KD dispersing element for the ULTRA-TURRAX T 50 digital disperser. Its sealed KD bearing and FFPM, PTFE and AISI 316L wetted parts make it suitable for solvents and vacuum, delivering finer results than the coarse (G) tool across batches of roughly 0.5 to 15 liters (water).

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.5 - 15 l
Stator diameter	45 mm
Rotor diameter	40.5 mm
Gap between rotor and stator	0.25 mm
allowable Speed max.	10000 rpm
Circumferential speed max.	21.2 m/s
Immersion depth	70 - 260 mm
Shaft length	300 mm
Material in contact with medium	FFPM, PTFE, AISI 316L
pH range	2 - 13
Suitable for solvents	yes
Working temperature max.	150 °C
Sterilization methods	autoclavable
Vacuum	100 mbar
Ultimate fineness, suspensions	25 - 50 µm
Ultimate fineness, emulsions	5 - 20 µm
Weight	0.645 kg

Product Data Sheet  |  Product Manual
