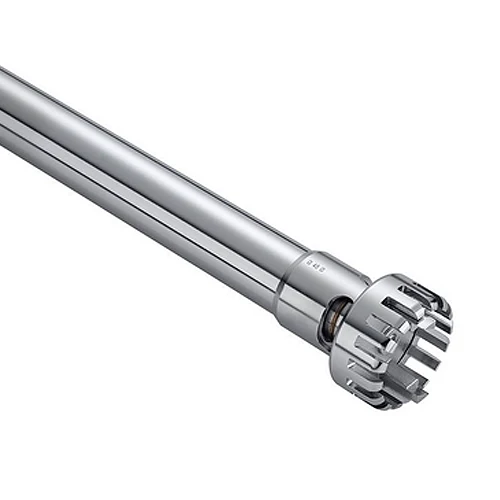

IKA® S 50 KG - HH - G 45 G Dispersing Element, 45 mm, 8003200

The IKA S 50 KG-HH-G 45 G is a coarse-tooth (G) high-performance dispersing element for the ULTRA-TURRAX T 50 digital disperser. The KG-HH design pairs a wear-resistant tungsten-carbide (WC) rotor-stator with FFPM seals and AISI 316L stainless steel, making it ideal for hard, abrasive materials as well as pressure and vacuum work over batches of roughly 0.5 to 20 liters (water).

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.5 - 20 l
Stator diameter	45 mm
Rotor diameter	36 mm
Circumferential speed max.	18.8 m/s
Immersion depth	70 - 260 mm
Shaft length	300 mm
Material in contact with medium	FFPM, WC /AISI 316L
pH range	2 - 13
Suitable for solvents	yes
Working temperature max.	150 °C
Sterilization methods	wet chemical
Vacuum	1 mbar
Pressure max.	6 bar
Ultimate fineness, suspensions	40 - 100 µm
Ultimate fineness, emulsions	10 - 30 µm
Weight	0.552 kg

Product Data Sheet  |  Product Manual
