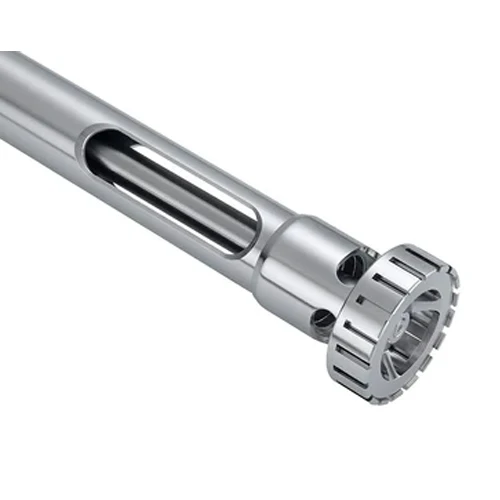

IKA® S 50 KG - HH - G 45 M Dispersing Element, Vol. Range 500ml - 15L, 8003500

The IKA S 50 KG-HH-G 45 M is a medium-tooth (M) KG-HH high-performance dispersing element for the ULTRA-TURRAX T 50 digital disperser. Its wear-resistant tungsten-carbide (WC) rotor-stator, FFPM seals and AISI 316L stainless steel suit hard, abrasive materials and pressure/vacuum applications, delivering finer results than the coarse (G) tool across batches of roughly 0.5 to 15 liters (water).

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume range (H2O)	0.5 - 15 l
Stator diameter	45 mm
Rotor diameter	40.5 mm
Circumferential speed max.	21.2 m/s
Immersion depth	70 - 250 mm
Shaft length	300 mm
Material in contact with medium	FFPM, WC /AISI 316L
pH range	2 - 13
Suitable for solvents	yes
Working temperature max.	150 °C
Sterilization methods	wet chemical
Vacuum	1 mbar
Pressure max.	6 bar
Ultimate fineness, suspensions	25 - 50 µm
Ultimate fineness, emulsions	5 - 20 µm
Weight	0.52 kg

Product Data Sheet  |  Product Manual
